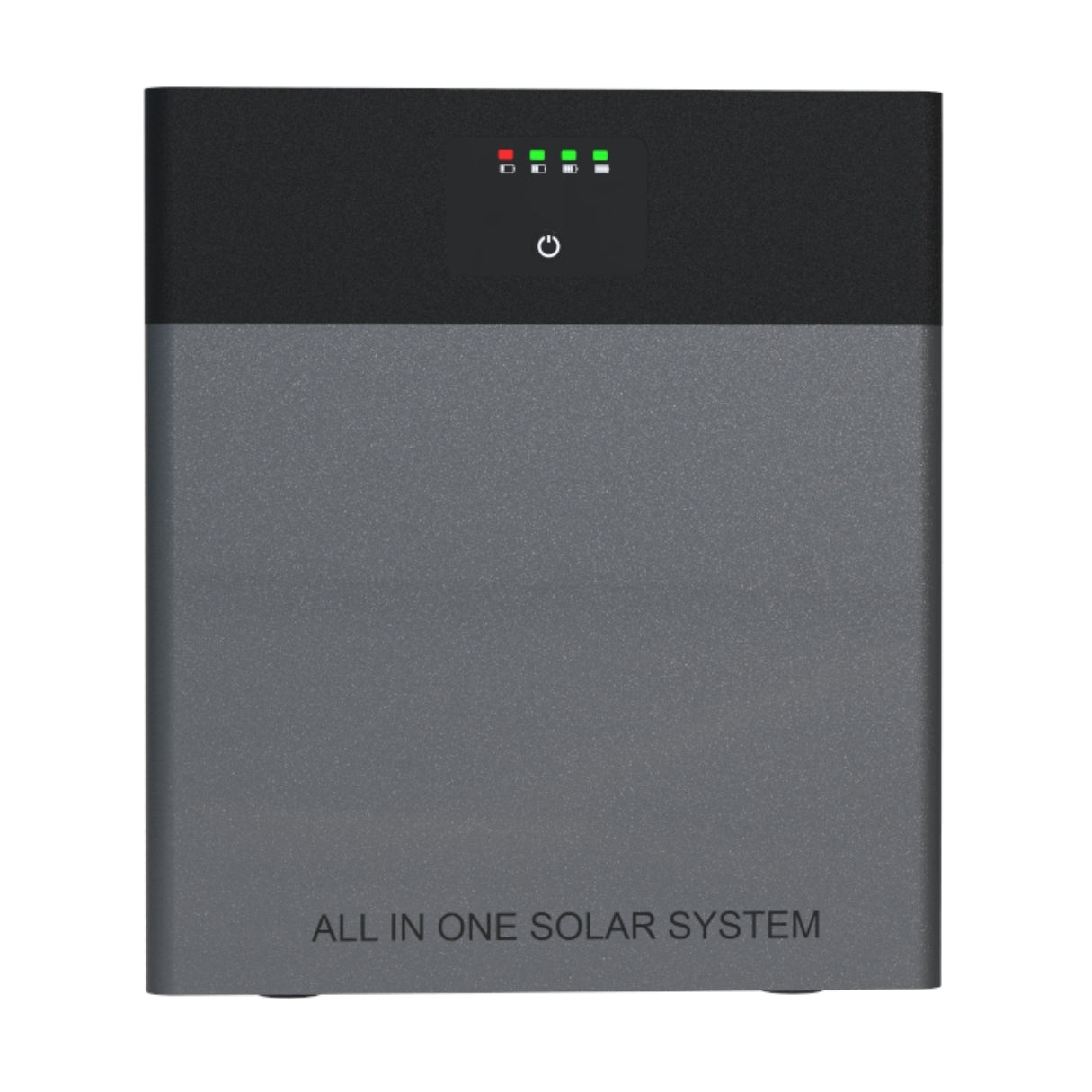

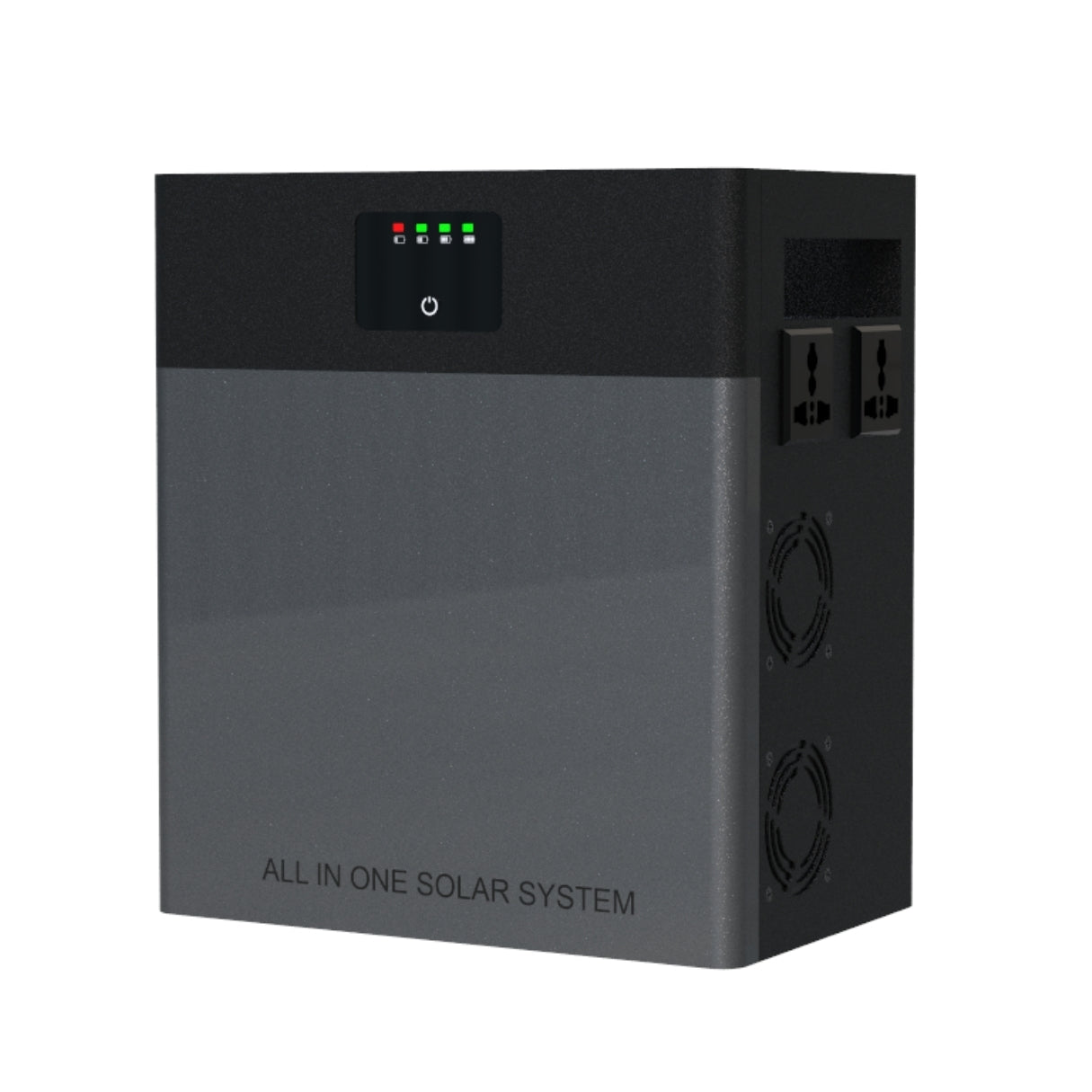

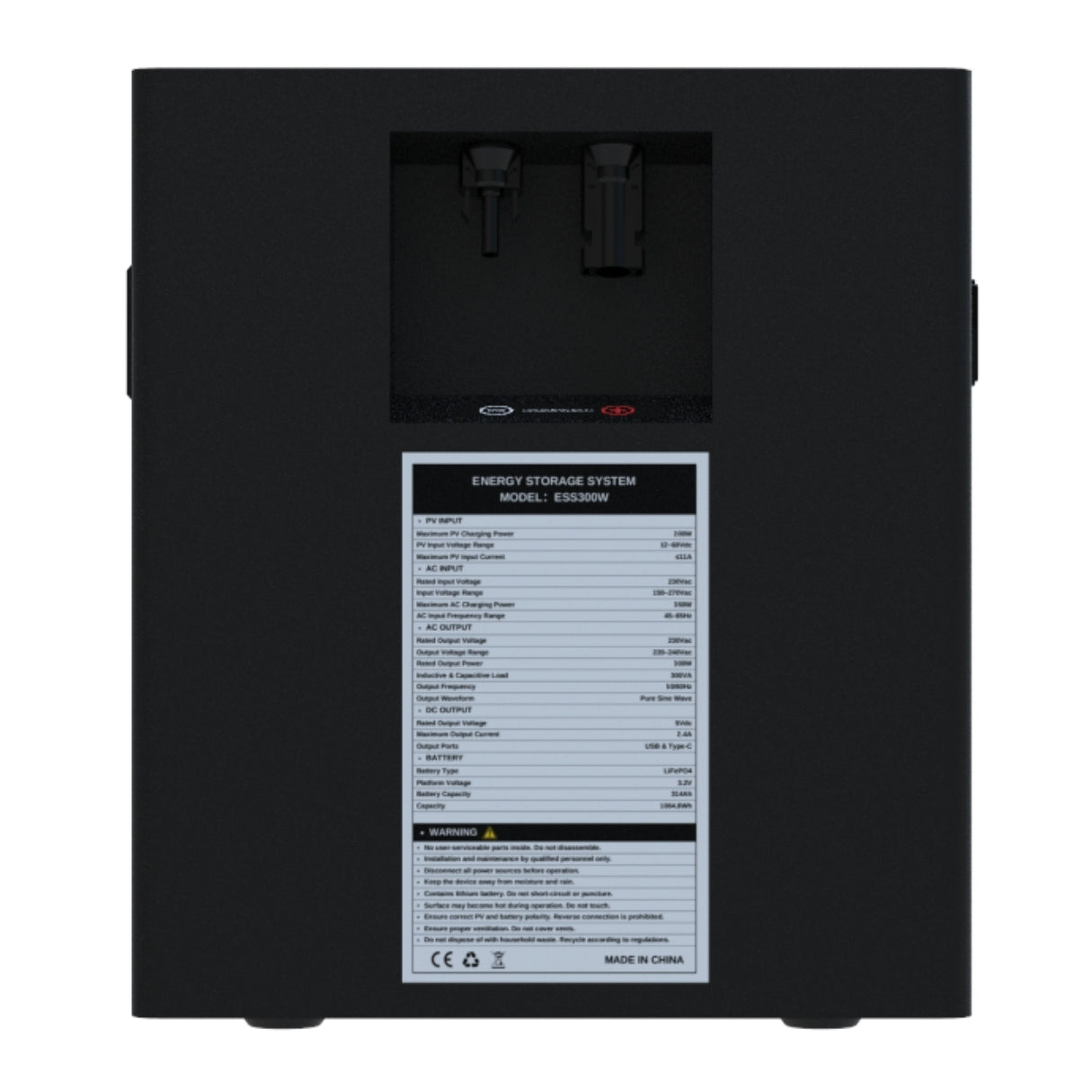

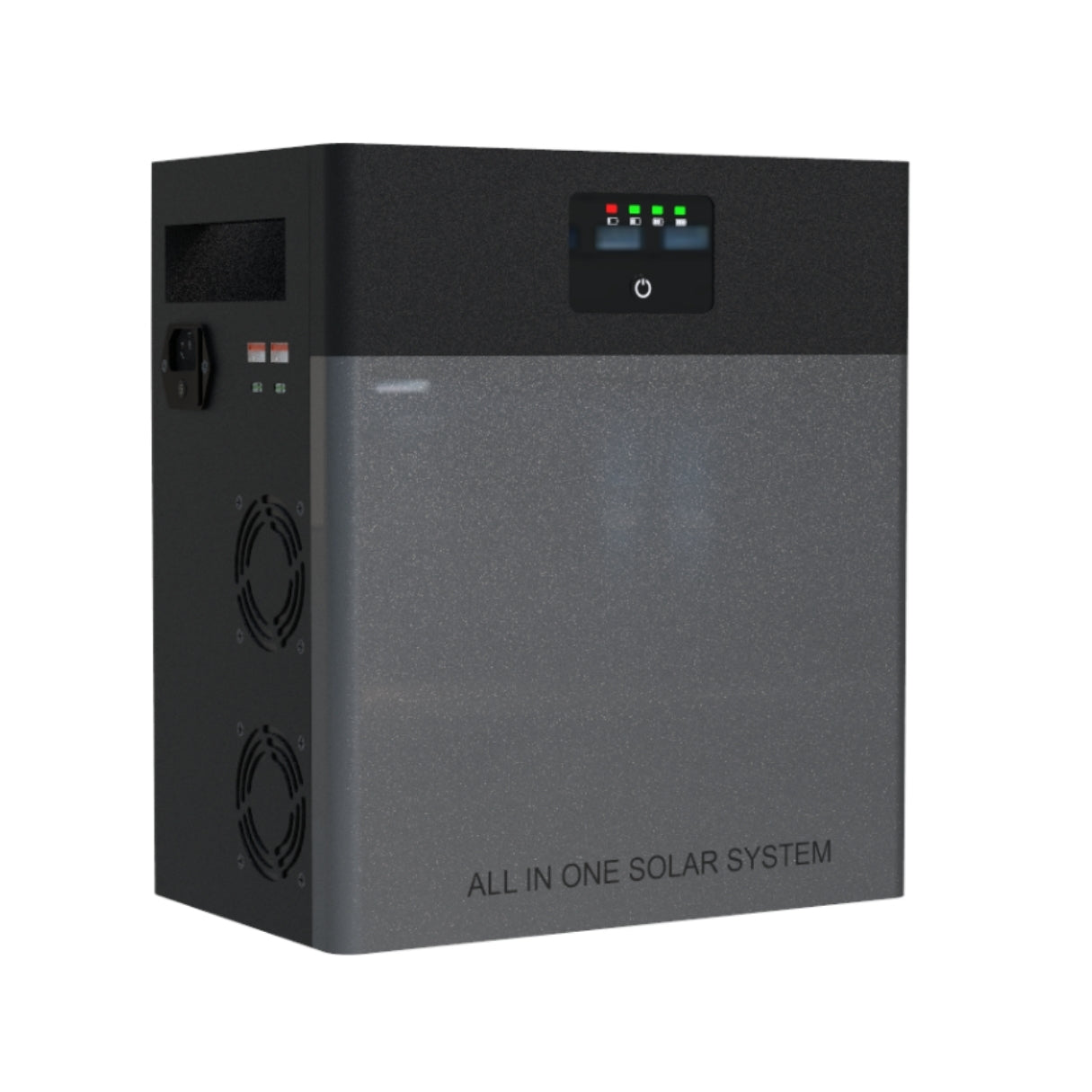

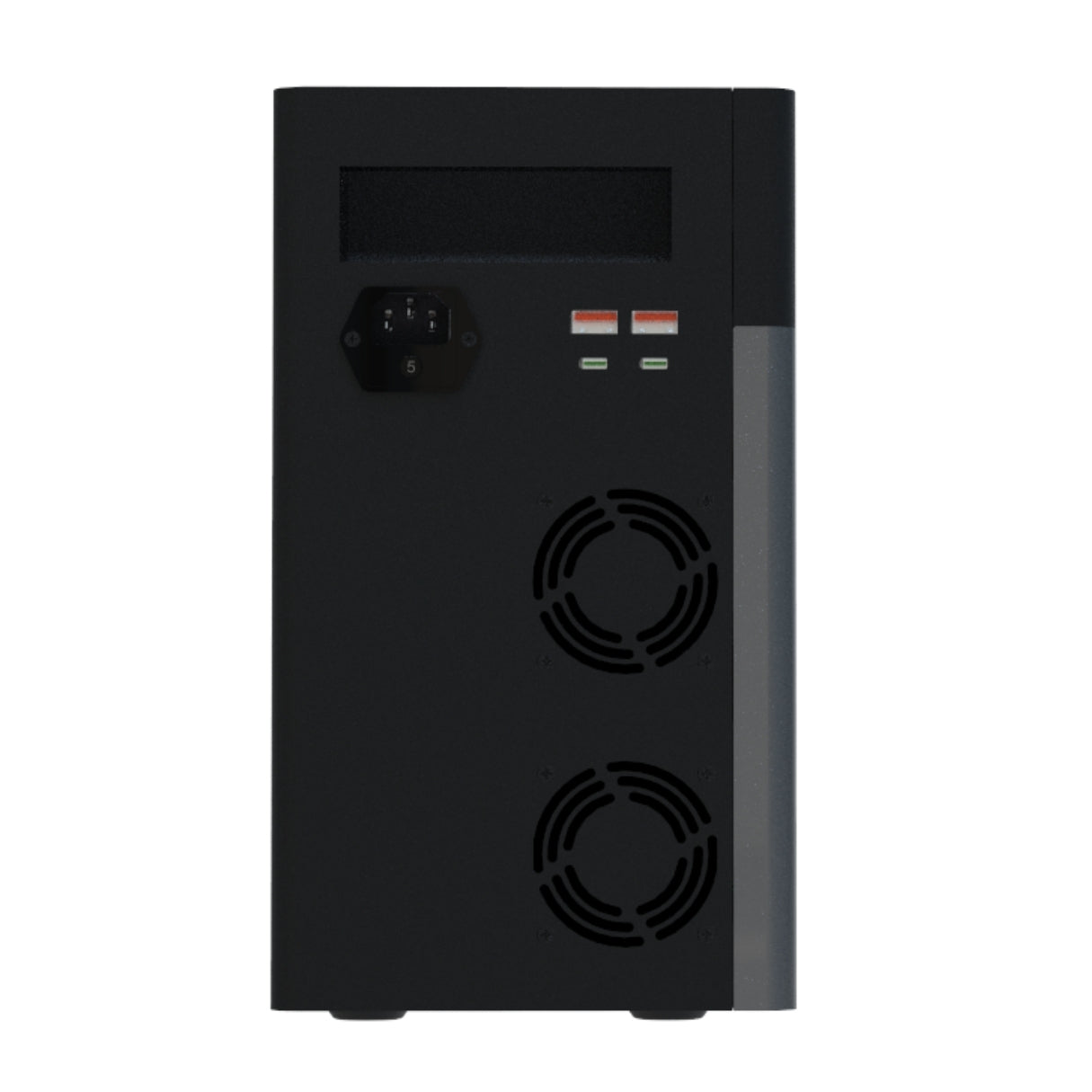

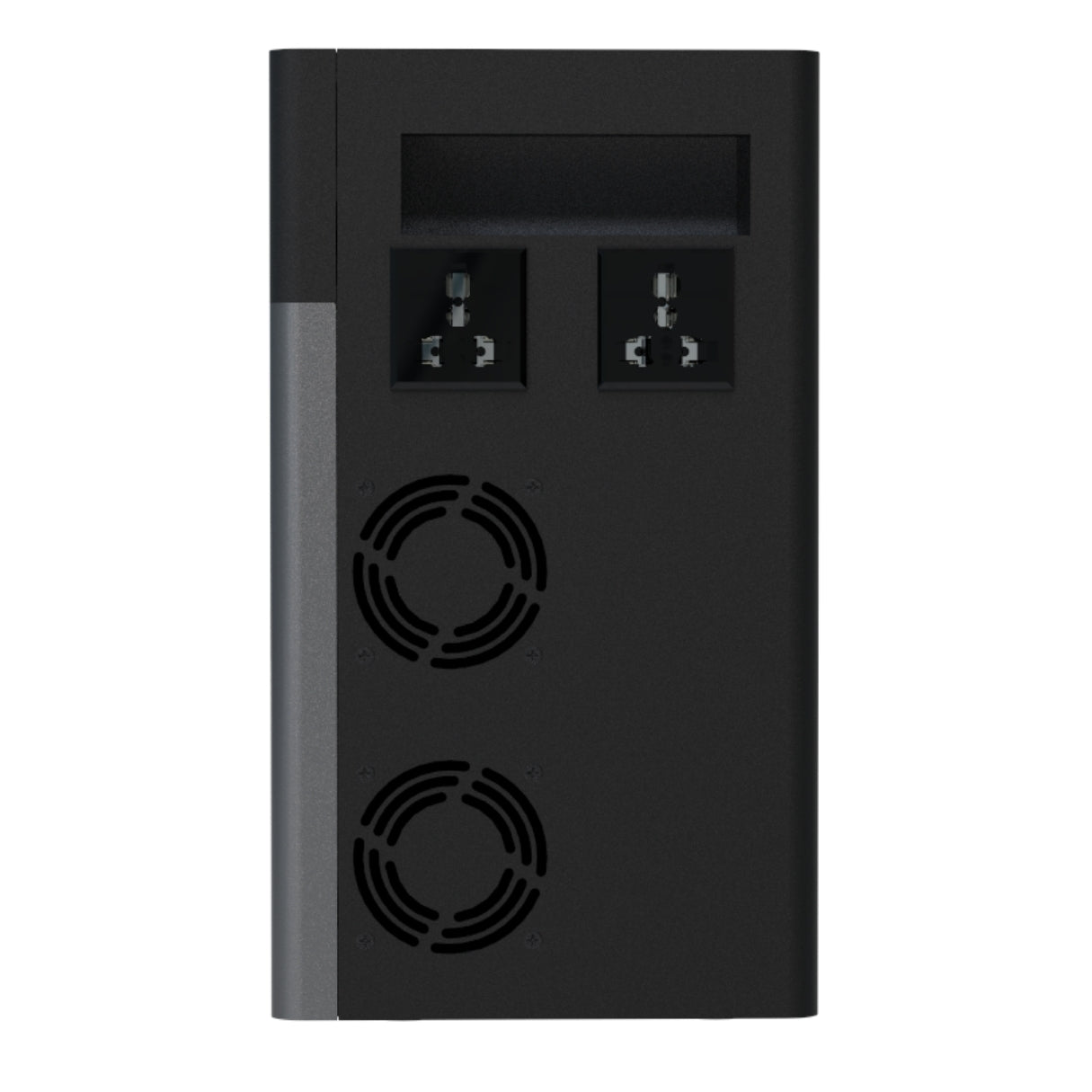

IPV ESS300W All-in-One Energy Storage System Portable Power Station
IPV ESS300W All-in-One Energy Storage System Portable Power Station
Regular price
$120.00 USD
Regular price
Sale price
$120.00 USD
Unit price
per
|
Product Overview
|
Rated Output Voltage
|
230Vac
|
|
Rated Output Power
|
300W
|
|
|
Battery Capacity
|
3.2V 314Ah（1004Wh）
|
|
|
Maximum PV Charging Power
|
200W
|
|
|
Maximum AC Charging Power
|
350W
|
|
|
UPS Mode Switching Time
|
≤10ms
|
|
|
PV Input
|
Maximum PV Charging Power
|
200W
|
|
PV Input Voltage Range
|
12–60Vdc
|
|
|
Maximum PV Input Current
|
≤11A
|
|
|
PV Under-Voltage Protection
|
11 ± 0.5Vdc
|
|
|
PV Under-Voltage Recovery
|
11.5 ± 0.5Vdc
|
|
|
PV Over-Voltage Protection
|
62 ± 1Vdc
|
|
|
PV Over-Voltage Recovery
|
60 ± 1Vdc
|
|
|
PV Conversion Efficiency
|
≥87%
|
|
|
PV MPPT Tracking Efficiency
|
≥98%
|
|
|
AC Input
|
Rated Input Voltage
|
230Vac
|
|
Input Voltage Range
|
150–270Vac
|
|
|
Under-Voltage Protection
|
145 ± 5Vac
|
|
|
Low-Voltage Recovery Point
|
150 ± 5Vac
|
|
|
Over-Voltage Protection
|
275 ± 5Vac
|
|
|
High-Voltage Recovery Point
|
265 ± 5Vac
|
|
|
Rated Input Current
|
4A
|
|
|
Maximum AC Charging Power
|
350W
|
|
|
AC Input Frequency Range
|
45–65Hz
|
|
|
Power Factor
|
≥0.98
|
|
|
AC Output
|
Rated Output Voltage
|
230Vac
|
|
Output Voltage Range
|
220–240Vac
|
|
|
Rated Output Power
|
300W
|
|
|
Inductive & Capacitive Load
|
300VA
|
|
|
Output Frequency
|
50/60Hz
|
|
|
Efficiency
|
≥85%
|
|
|
Output Waveform
|
Pure Sine Wave
|
|
|
DC Output
|
Rated Output Voltage
|
5Vdc
|
|
Maximum Output Current
|
2.4A
|
|
|
Output Ports
|
USB & Type-C
|
|
|
Packaging Information
|
Product Dimensions
|
255*165*288mm
|
|
Packaging Size
|
325*225*425mm
|
|
|
Net weight
|
10.50KG
|
|
|
Gross weight
|
11.52KG
|
Explore more from IPV ESSA
- Shop all All-in-One ESS
- IPV ESS1K2 All-in-One Energy Storage System — 1.2kW
- IPV ESS2K5 All-in-One Energy Storage System — 2.5kW
Frequently Asked Questions
What is an all-in-one energy storage system?
A single unit that combines an inverter, charge controller, and battery for plug-and-play backup and off-grid power.
What can it power?
Essential loads such as lights, Wi-Fi, TV, fridge, and small tools, within the unit's continuous watt rating.
Can it recharge from solar?
Yes. IPV ESSA ESS units accept PV input so the battery recharges from solar during the day.
Is it portable?
Compact models are built for RVs, cabins, and field use; larger systems are installed on-site.
