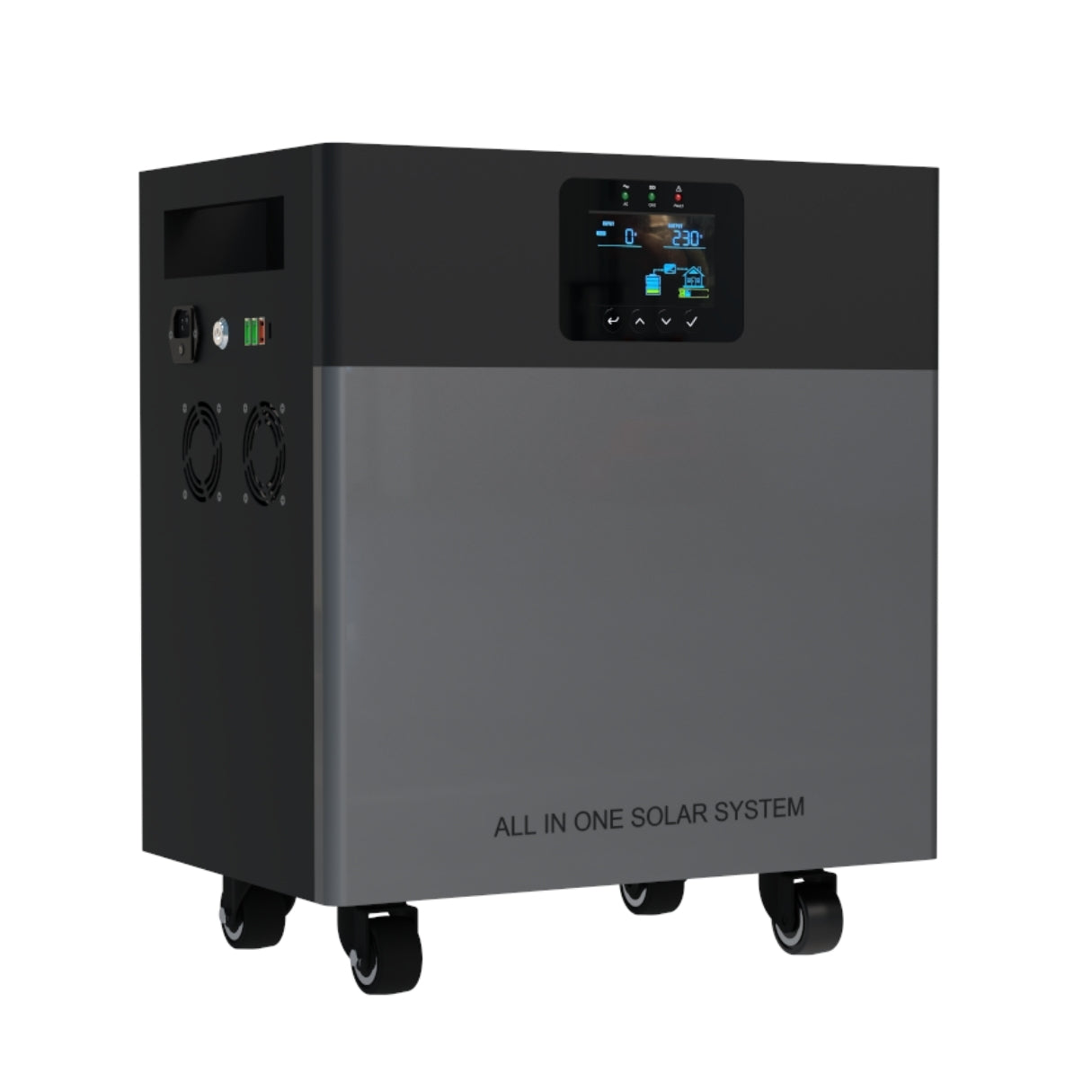

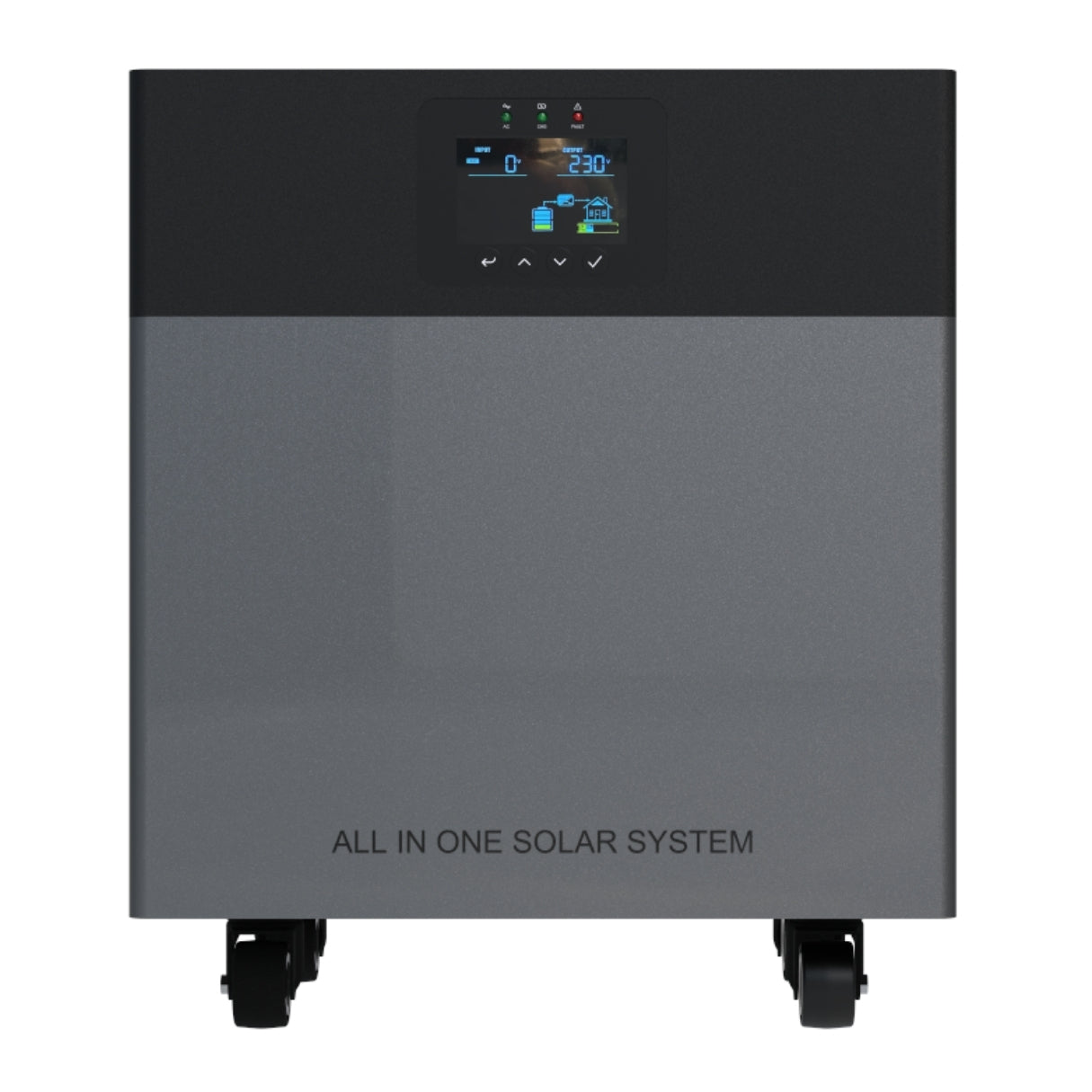

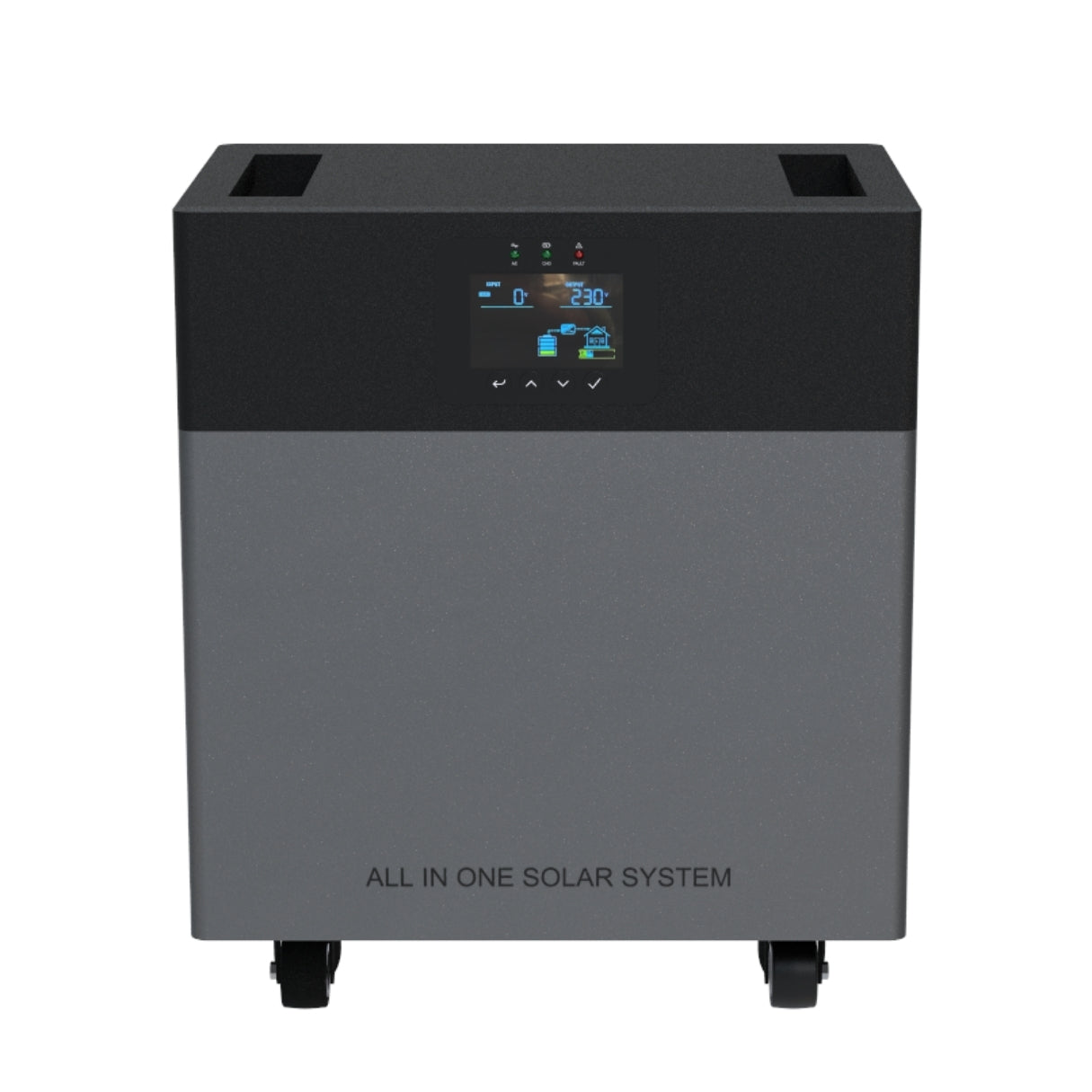

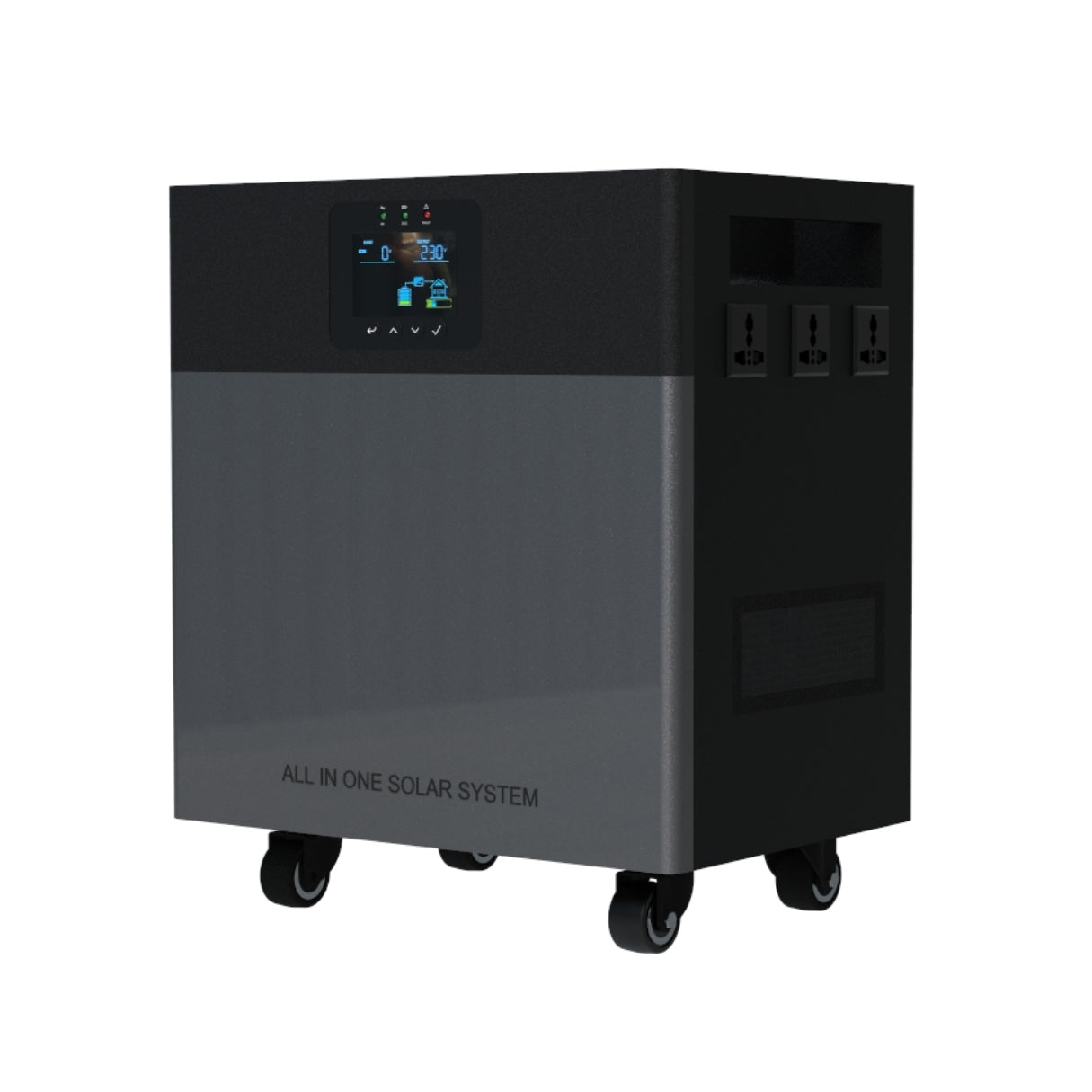

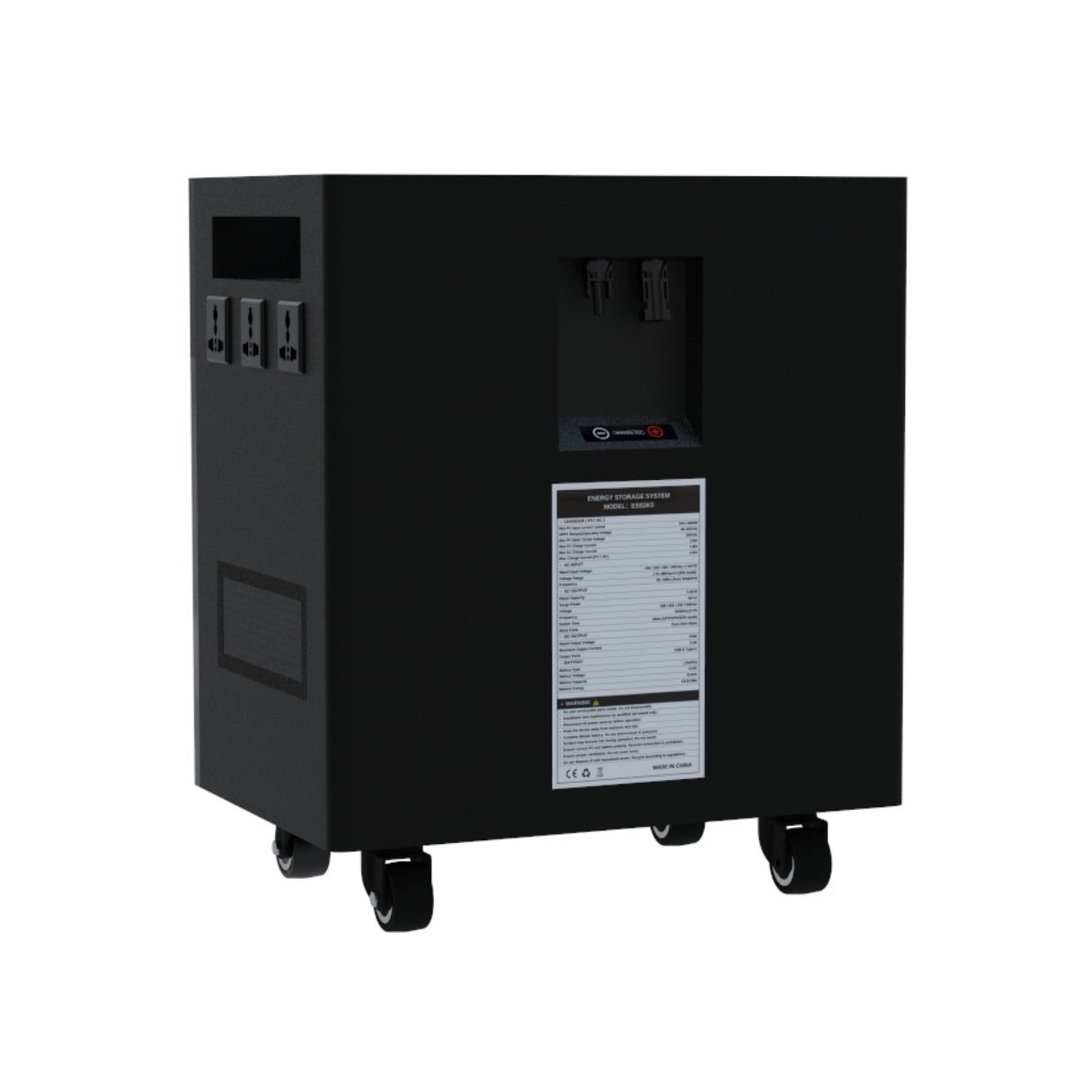

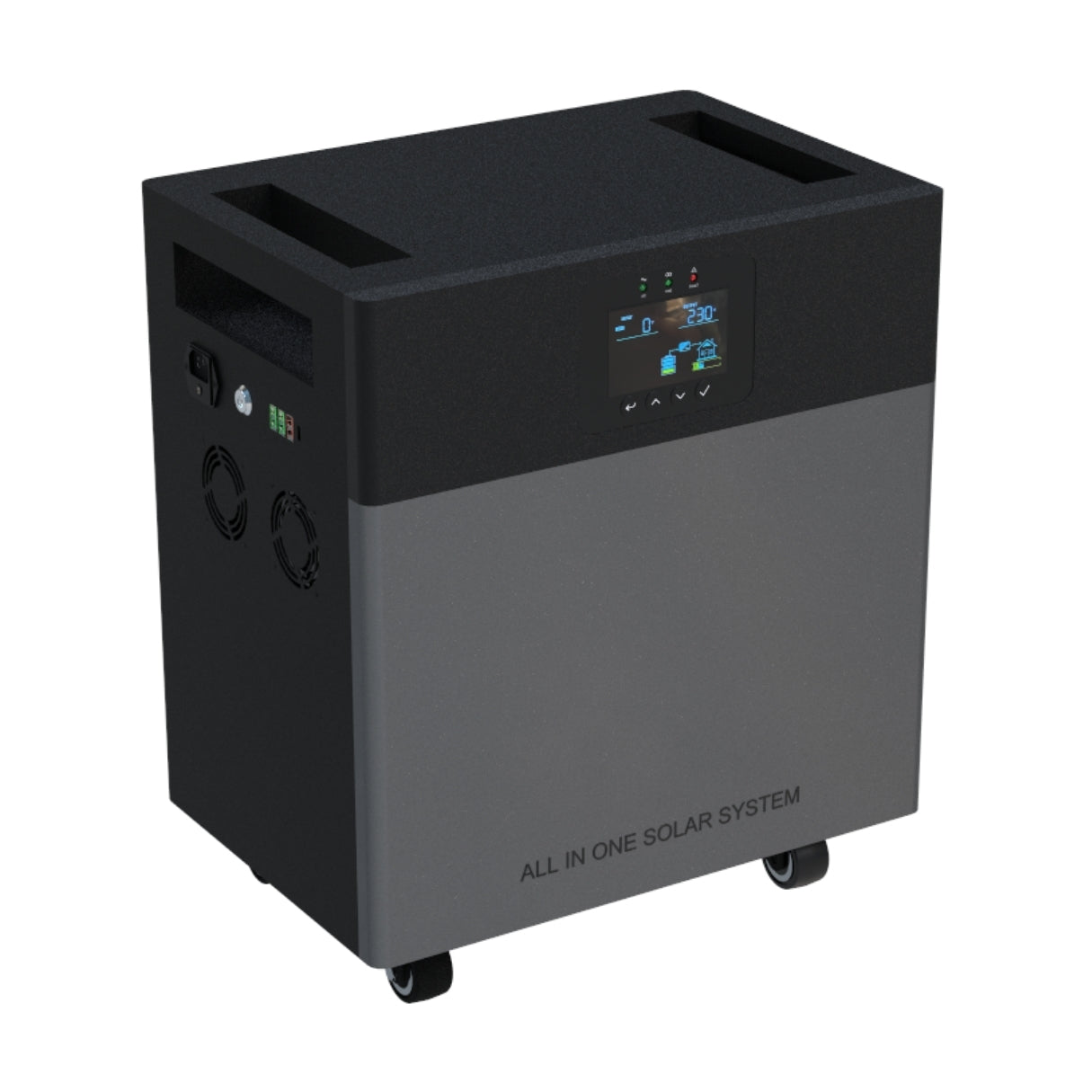

IPV ESS2K5 All-in-One Energy Storage System — 2.5kW Portable Power Station
IPV ESS2K5 All-in-One Energy Storage System — 2.5kW Portable Power Station
Regular price
$434.00 USD
Regular price
Sale price
$434.00 USD
Unit price
per
| Product Overview | Rated Output Voltage | 230Vac |
| Rated Output Power | 2.5KW | |
| Battery Capacity | 12.8V 314Ah（4019Wh） | |
| Maximum PV Charging Power | 4000W | |
| UPS Mode Switching Time | ≤10ms | |
| AC Input | Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L+N+PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) | |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) | |
| AC Output | Rated Capacity (kW) | 2.5 |
| Surge Power (kVA) | 5 | |
| Voltage (VAC) | 208 / 220 / 230 / 240 | |
| Power Factor (PF) | 1 | |
| Frequency | 50/60Hz±0.1% | |
| Switch Time (ms) | 10 (APP/UPS/GEN mode) | |
| Wave Form | Pure Sine Wave | |
| Max. Efficiency (Battery Mode) | 85%~88% | |
| Charger(PV / AC) | Solar Charger Type | MPPT |
| Max PV input current / power | 10A / 4000W | |
| MPPT Range@Operating Voltage (VDC) | 45~450 | |
| Max PV Open Circuit Voltage (VDC) | 500 | |
| Max PV Charge Current (A) | 120 | |
| Max AC Charge Current (A) | 120 | |
| Max. Charge Current (PV + AC) (A) | 120 | |
| Battery | Battery Type | LiFePO₄ |
| Battery Voltage | 12.8V | |
| Battery Capacity | 314Ah | |
| Battery Energy | 4019.2Wh | |
| DC Output | Rated Output Voltage | 5Vdc |
| Maximum Output Current | 2.4A | |
| Output Ports | USB & Type-C | |
| Packaging Information | Product Dimensions | 395*273*465mm |
| Packaging Size | 530*465*340mm | |
| Net weight | 39.32KG | |
| Gross weight | 41.36KG |
Explore more from IPV ESSA
- Shop all All-in-One ESS
- IPV ESS300W All-in-One Energy Storage System
- IPV ESS1K2 All-in-One Energy Storage System — 1.2kW
Frequently Asked Questions
What is an all-in-one energy storage system?
A single unit that combines an inverter, charge controller, and battery for plug-and-play backup and off-grid power.
What can it power?
Essential loads such as lights, Wi-Fi, TV, fridge, and small tools, within the unit's continuous watt rating.
Can it recharge from solar?
Yes. IPV ESSA ESS units accept PV input so the battery recharges from solar during the day.
Is it portable?
Compact models are built for RVs, cabins, and field use; larger systems are installed on-site.
