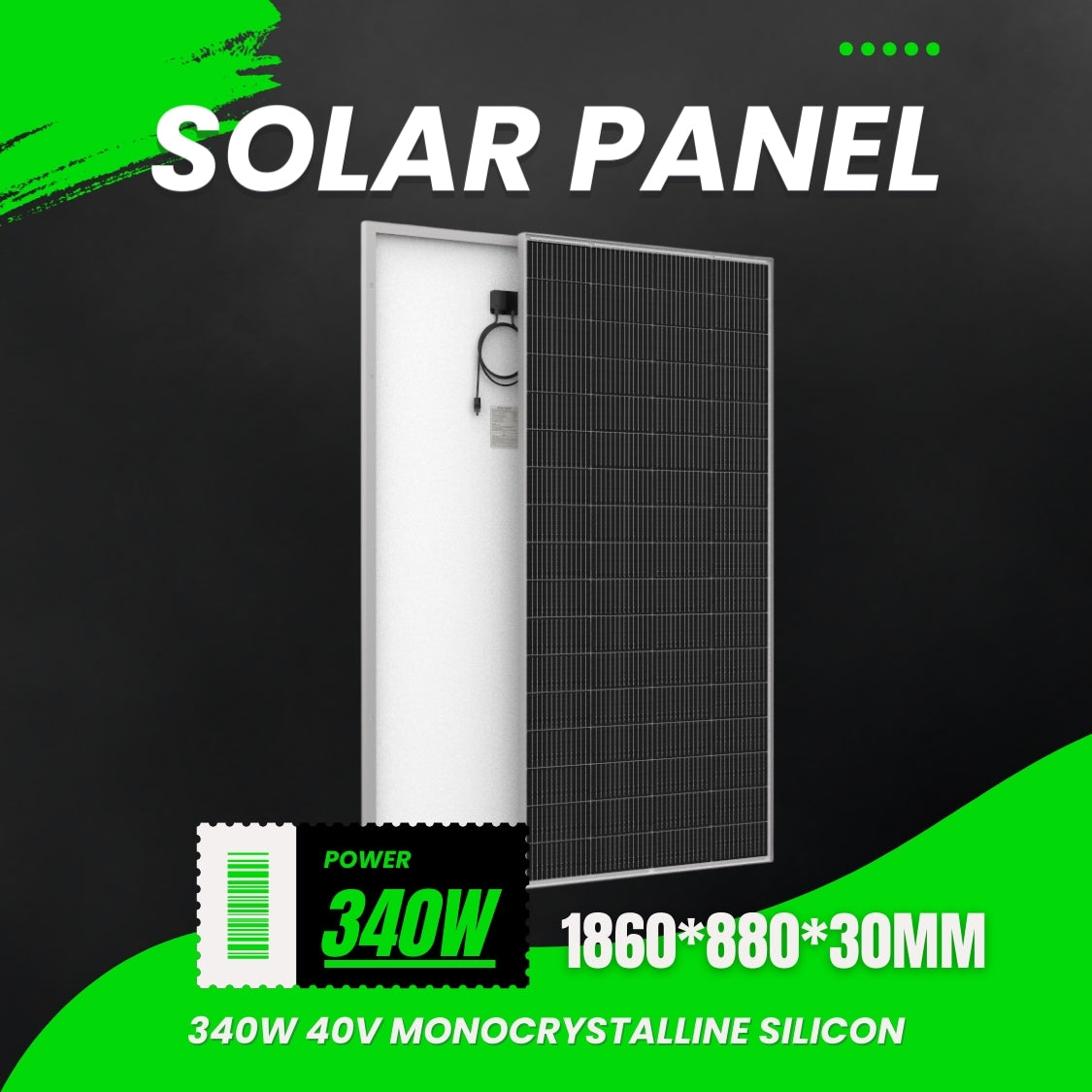

340W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
340W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
Nearing 49 V open-circuit, the 340 W module works well in longer series strings, where holding current at 8.83 A lets installers use standard 4 mm² cable across the whole array without special provisions.
Technical specifications
| Maximum Power (Pmax) | 340 W |
|---|---|
| Open Circuit Voltage (Voc) | 48.96 V |
| Short Circuit Current (Isc) | 8.83 A |
| Voltage at Pmax (Vmp) | 40.8 V |
| Current at Pmax (Imp) | 8.33 A |
| Module Efficiency | 20.77 % |
| Power Tolerance | 0, +4.99W |
| Maximum System Voltage | 700 V DC |
| Max Series Fuse Rating | 20 A |
| Module Type | 210M340 |
| Solar Cells | Mono crystalline 210*105mm (4*17Pcs) |
| External Dimensions | 1860*880*30mm |
| Weight | 16.87 kg |
| Front Glass | 3.2 mm tempered glass |
| Frame | Aluminum |
| Junction Box | IP67 |
| Output Cables | 100CM 4mm² Cable |
| Connector | MC4 Compatible |
| Mechanical Load | Front Side Max. 5400Pa, Rear Side Max. 2400Pa |
| Pmax Temperature Coefficient | -0.350%/°C |
| Voc Temperature Coefficient | -0.270%/°C |
| Isc Temperature Coefficient | +0.048%/°C |
| Package Dimensions | 1875*70*895mm |
| Package Weight | 36 kg |
| Pieces per Package | 2 |
Where it fits best
- Long series strings on a single MPPT input
- 48 V off-grid systems still in the design phase
- Commercial rooftops prioritising simple cabling
Questions buyers ask
How does this fit a 48 V system?
Strings of two or more reach the voltage a 48 V MPPT expects comfortably, while the modest current keeps losses and cable costs low.
What about hot-climate performance?
The -0.350 %/°C power temperature coefficient is typical for monocrystalline modules. In hot climates, allow for reduced peak output and favour mounting that lets air move beneath the panel.
Explore more from IPV ESSA
- Shop all Solar Panels
- 360W Monocrystalline Solar Panel PV Module (1980×880×30mm)
- 400W Monocrystalline Solar Panel PV Module (1770×1100×30mm)
Frequently Asked Questions
What is a monocrystalline solar panel?
A panel built from single-crystal silicon cells, giving higher efficiency and a smaller footprint than polycrystalline types.
Do panels work on cloudy days?
Yes, at reduced output — typically 10–50% of clear-sky levels depending on how thick the cloud cover is.
How long do solar panels last?
Quality modules commonly retain most of their output for 20–25 years thanks to tempered glass and aluminium frames.
Can I connect panels to a battery?
Panels feed an MPPT charge controller or hybrid inverter, which safely charges the connected battery bank.
