360W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
360W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
At nearly two metres long but only 880 mm wide, this 360 W module suits roofs with generous run-length and limited width — the shape of many residential gable ends and long commercial sheds.
Where it fits best
- Shed and warehouse roofs with long uninterrupted runs
- 48 V off-grid systems
- High-density residential arrays
Questions buyers ask
Does the length complicate transport?
A two-metre module needs suitable vehicle and handling planning, which is worth confirming for remote sites before ordering.
Will wind uplift be a concern at this size?
The 5400 Pa front load rating covers standard exposure. Sites with exceptional wind exposure should have the fixing pattern engineered specifically.
Technical specifications
| Maximum Power (Pmax) | 360 W |
|---|---|
| Open Circuit Voltage (Voc) | 51.84 V |
| Short Circuit Current (Isc) | 8.83 A |
| Voltage at Pmax (Vmp) | 43.2 V |
| Current at Pmax (Imp) | 8.33 A |
| Module Efficiency | 20.66 % |
| Power Tolerance | 0, +4.99W |
| Maximum System Voltage | 700 V DC |
| Max Series Fuse Rating | 20 A |
| Module Type | 210M360 |
| Solar Cells | Mono crystalline 210*105mm (4*18Pcs) |
| External Dimensions | 1980*880*30mm |
| Weight | 17.96 kg |
| Front Glass | 3.2 mm tempered glass |
| Frame | Aluminum |

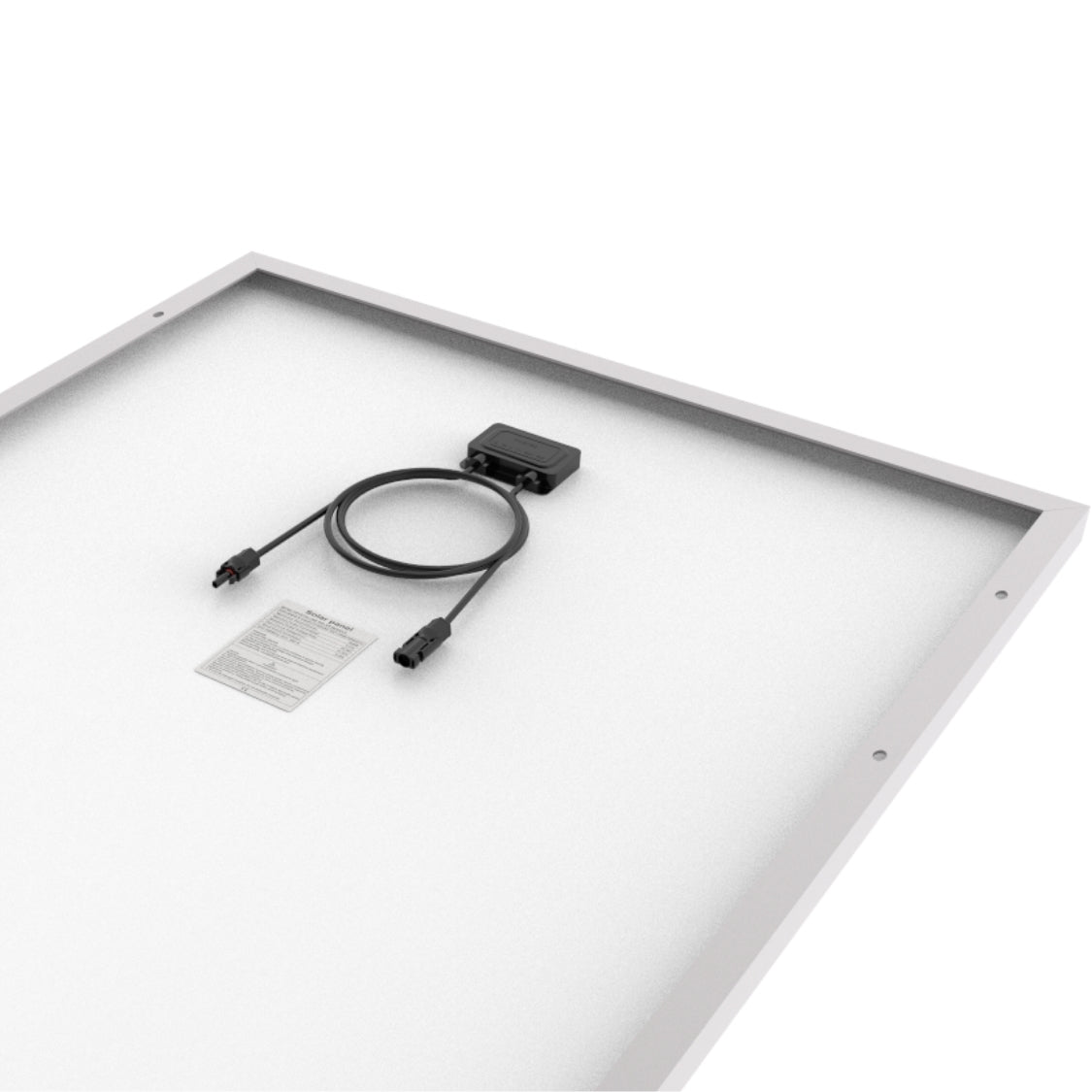

| Junction Box | IP67 |
| Output Cables | 100CM 4mm² Cable |
| Connector | MC4 Compatible |
| Mechanical Load | Front Side Max. 5400Pa, Rear Side Max. 2400Pa |
| Pmax Temperature Coefficient | -0.350%/°C |
| Voc Temperature Coefficient | -0.270%/°C |
| Isc Temperature Coefficient | +0.048%/°C |
| Package Dimensions | 1995*70*895mm |
| Package Weight | 38 kg |
| Pieces per Package | 2 |
Explore more from IPV ESSA
- Shop all Solar Panels
- 400W Monocrystalline Solar Panel PV Module (1770×1100×30mm)
- 450W Monocrystalline Solar Panel PV Module (1980×1100×30mm)
Frequently Asked Questions
What is a monocrystalline solar panel?
A panel built from single-crystal silicon cells, giving higher efficiency and a smaller footprint than polycrystalline types.
Do panels work on cloudy days?
Yes, at reduced output — typically 10–50% of clear-sky levels depending on how thick the cloud cover is.
How long do solar panels last?
Quality modules commonly retain most of their output for 20–25 years thanks to tempered glass and aluminium frames.
Can I connect panels to a battery?
Panels feed an MPPT charge controller or hybrid inverter, which safely charges the connected battery bank.
