290W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
290W Monocrystalline Solar Panel PV Module for Home & Commercial Rooftop
A 43.2 V open-circuit voltage moves this module into 24 V territory, which roughly halves the current versus an equivalent 12 V panel and lets you run thinner cable over longer distances. It suits arrays where the controller sits well away from the roof.
Technical specifications
| Maximum Power (Pmax) | 290 W |
|---|---|
| Open Circuit Voltage (Voc) | 43.2 V |
| Short Circuit Current (Isc) | 8.54 A |
| Voltage at Pmax (Vmp) | 36 V |
| Current at Pmax (Imp) | 8.06 A |
| Module Efficiency | 22.18 % |
| Power Tolerance | 0, +4.99W |
| Maximum System Voltage | 700 V DC |
| Max Series Fuse Rating | 20 A |
| Module Type | 182M29036 |
| Solar Cells | Mono crystalline 182*91mm (4*18Pcs) |
| External Dimensions | 1720*760*30mm |
| Weight | 13.5 kg |
| Front Glass | 3.2 mm tempered glass |
| Frame | Aluminum |

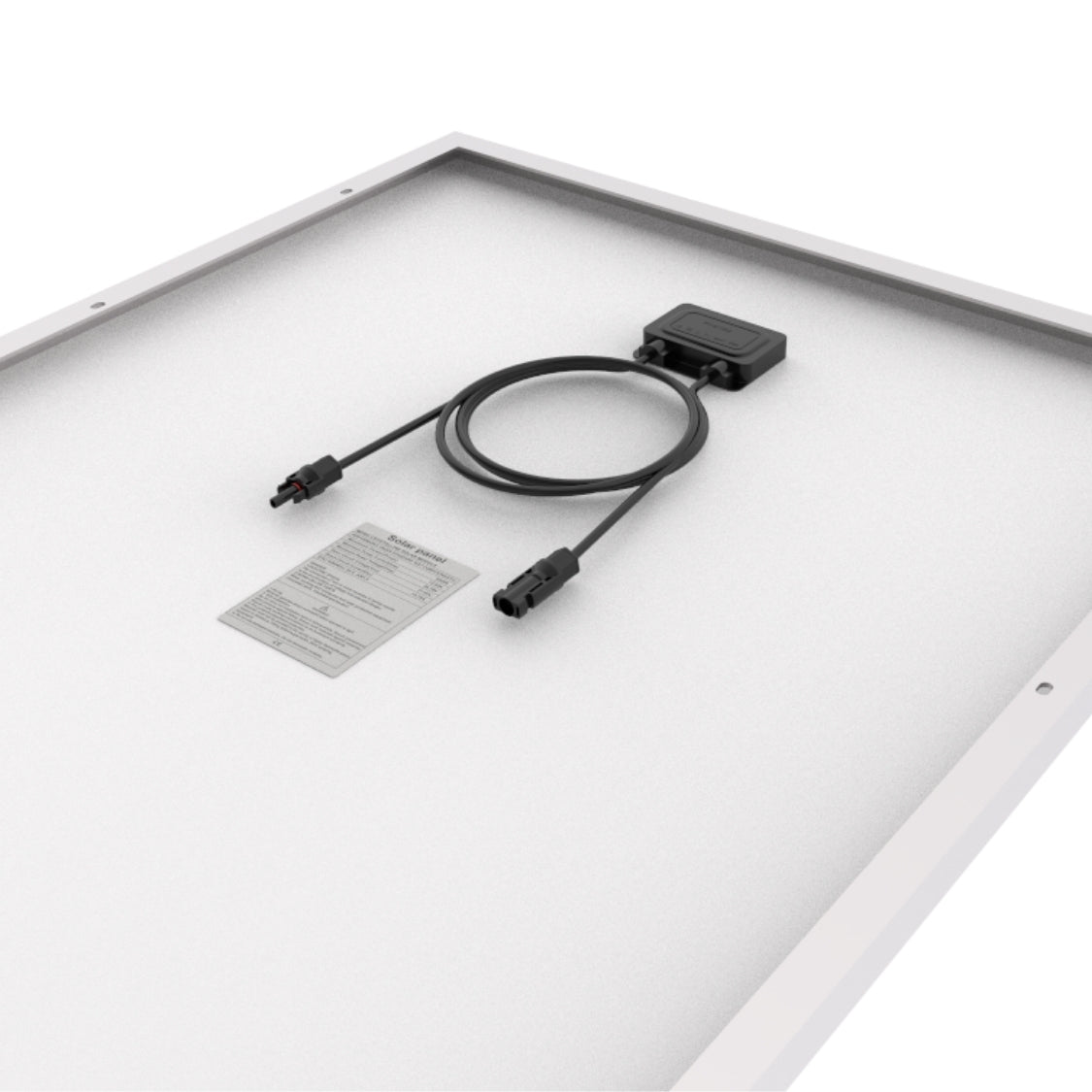

| Junction Box | IP67 |
| Output Cables | 90CM 4mm² Cable |
| Connector | MC4 Compatible |
| Mechanical Load | Front Side Max. 5400Pa, Rear Side Max. 2400Pa |
| Pmax Temperature Coefficient | -0.350%/°C |
| Voc Temperature Coefficient | -0.270%/°C |
| Isc Temperature Coefficient | +0.048%/°C |
| Package Dimensions | 1730*67*770mm |
| Package Weight | 29 kg |
| Pieces per Package | 2 |
Where it fits best
- 24 V off-grid systems for a small home or shop
- Arrays where the controller and battery sit 15 m or more from the panels
- Grid-tie strings feeding a higher-voltage MPPT input
Questions buyers ask
Can I use this on a 12 V system?
Only with an MPPT controller that accepts the higher input voltage. A PWM controller would waste most of the module's power, so MPPT is strongly recommended here.
How does 24 V help my installation?
Lower current means less voltage drop and smaller cable sizes, which usually pays for itself on runs beyond about 10 m.
