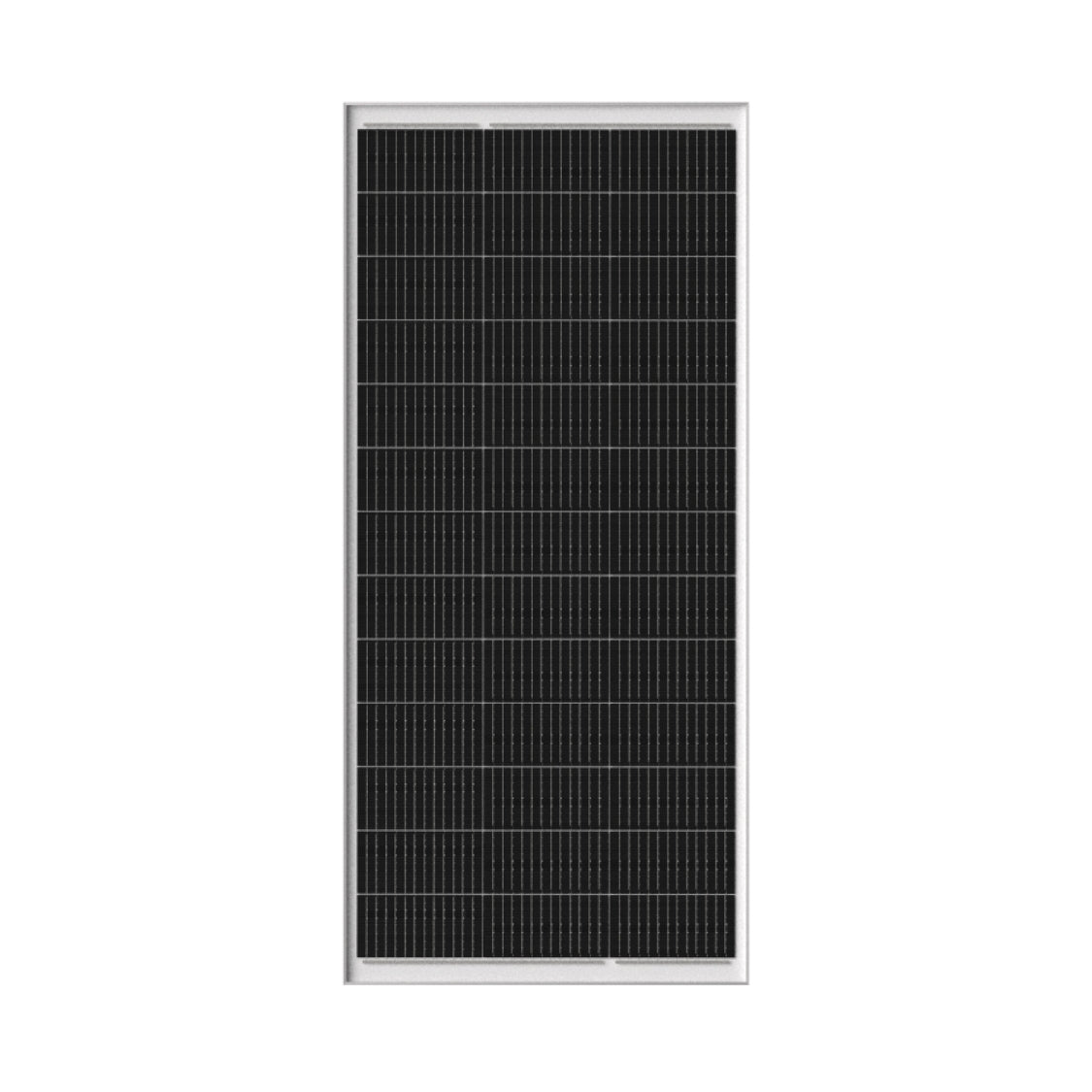

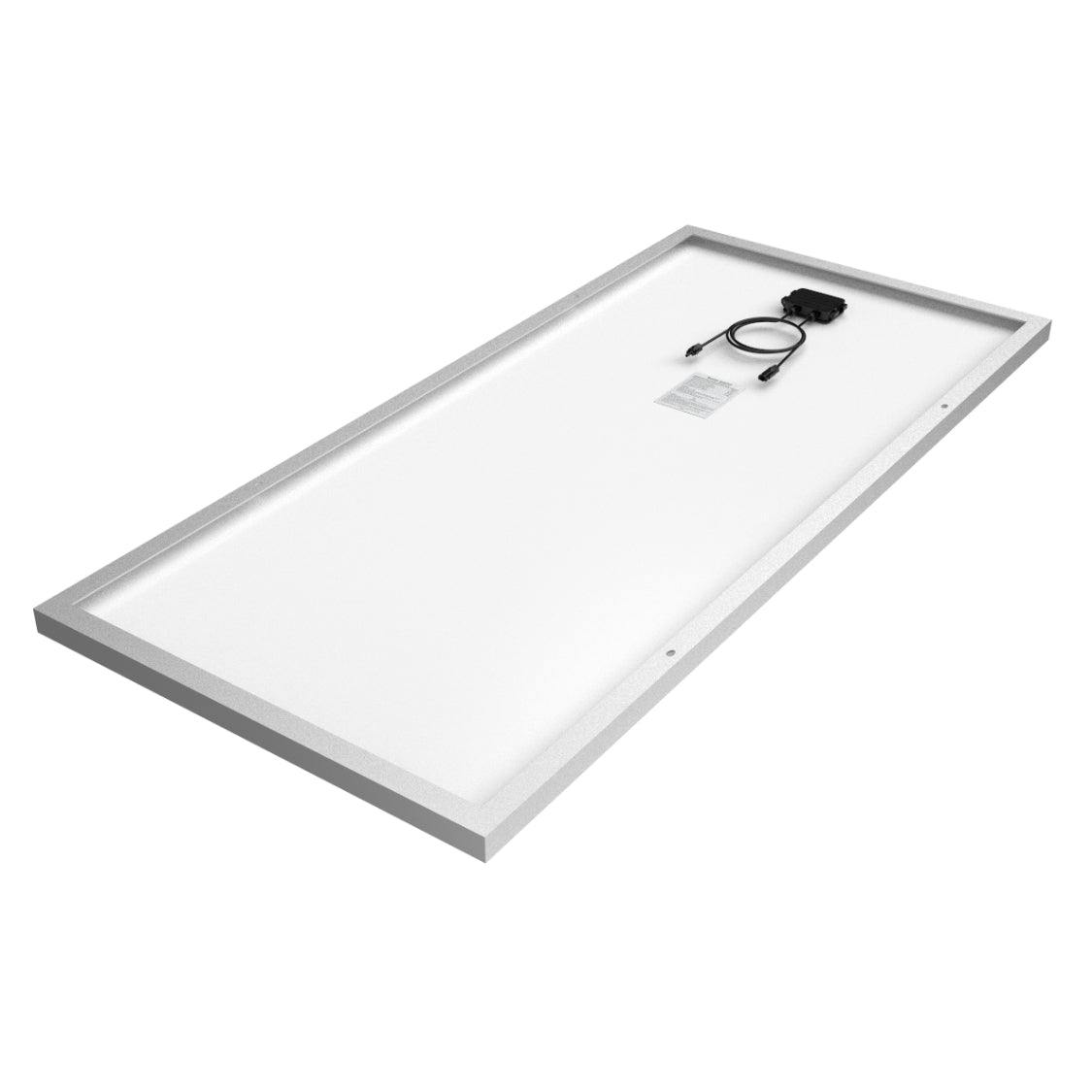

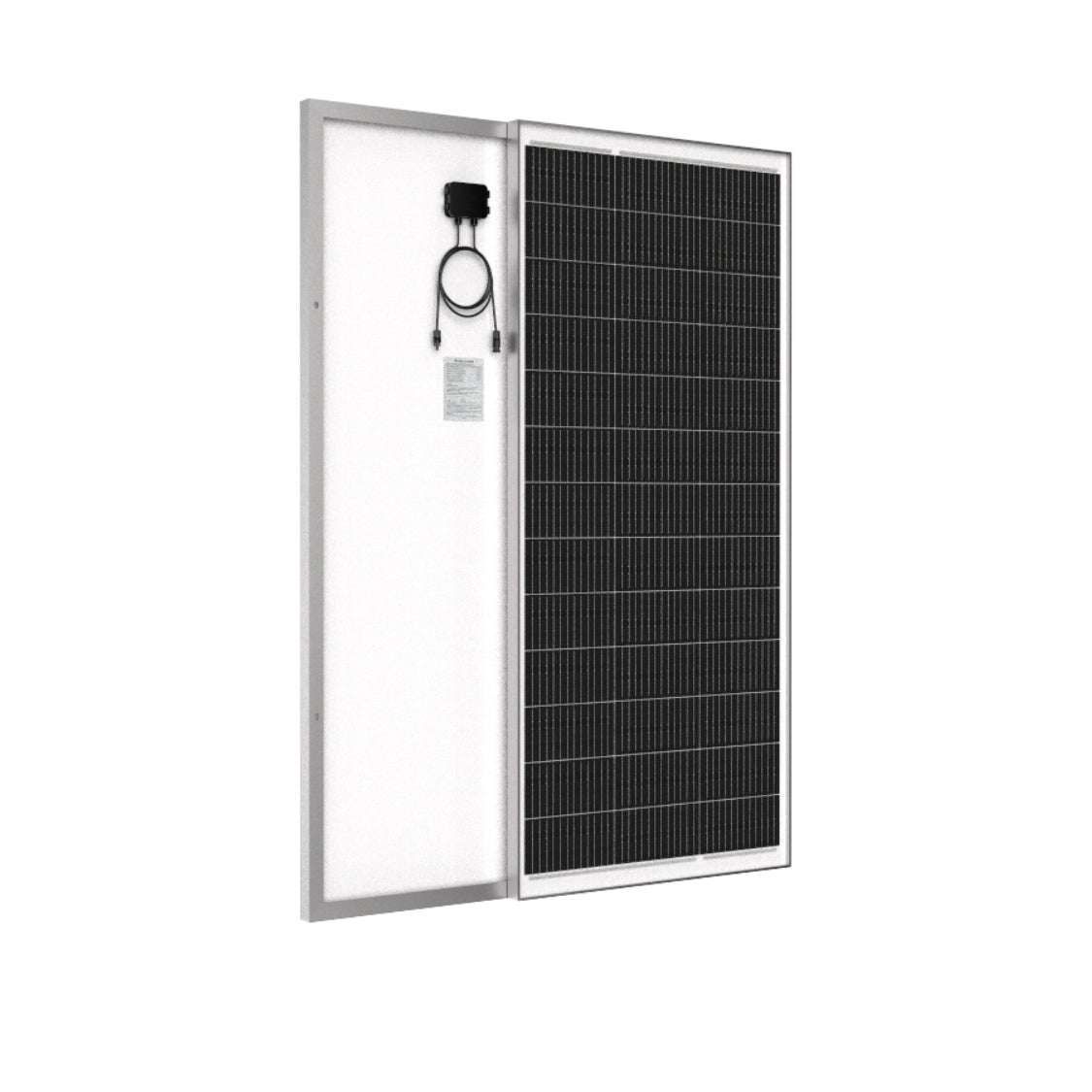

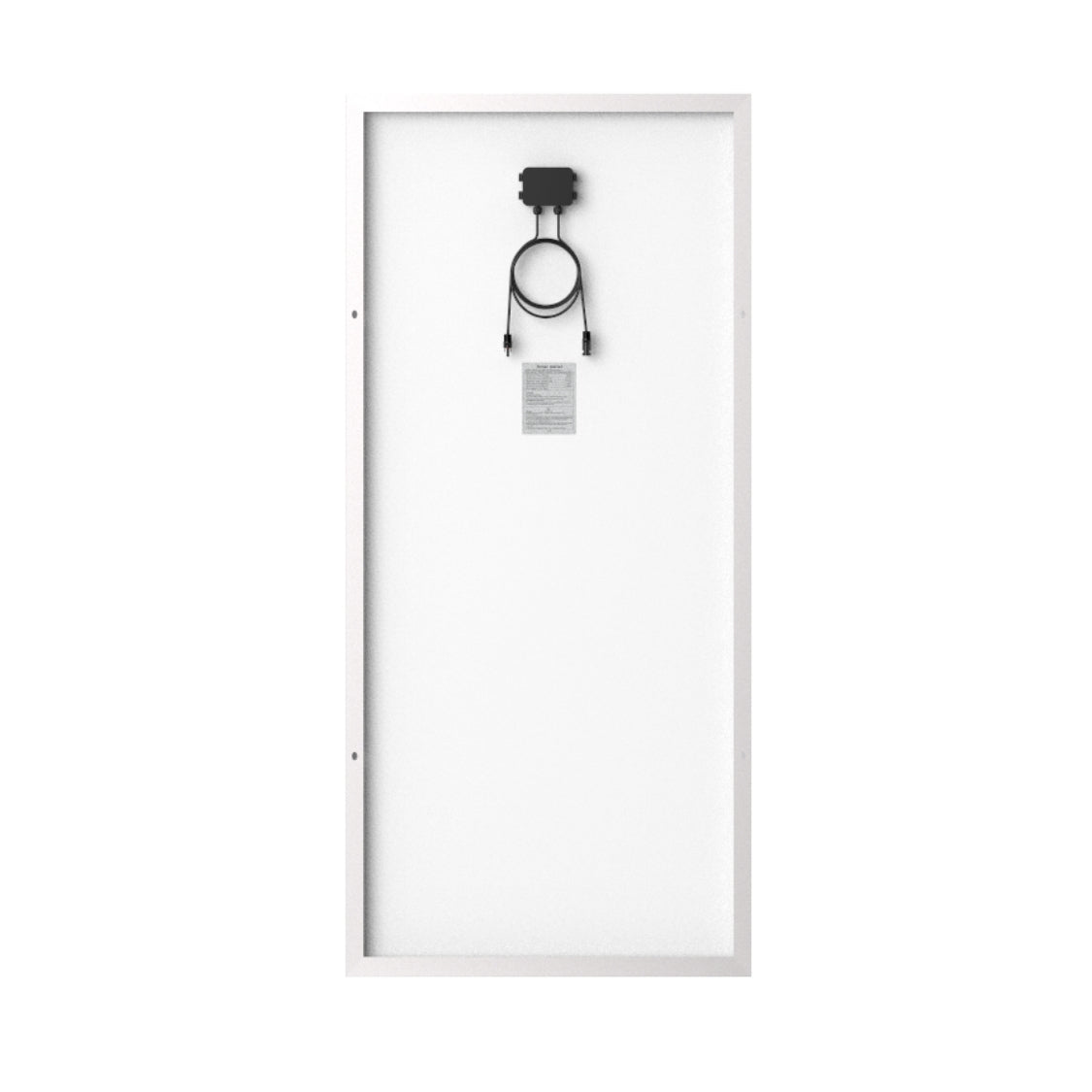

200w 1480x680x30mm
200w 1480x680x30mm
Regular price
$26.38
Regular price
Sale price
$26.38
Unit price
per
|
Electrical Characteristics (STC)
|
|
|
Maximum Power- Pmax
|
200W
|
|
Open Circuit Voltage - Voc
|
28.08V
|
|
Short- Circuit Current - Isc
|
9.06A
|
|
Voltage at Pmax -Vmp
|
23.4V
|
|
Current at Pmax - Imp
|
8.55A
|
|
Module Efficiency -ηm
|
19.87%
|
|
Power Tolerance
|
0, +4.99W
|
|
Maximum System Voltage
|
700Vdc (IEC / UL)
|
|
Maximum Series Fuse Rating
|
15A
|
|
Mechanical Specifications
|
|
|
External Dimensions
|
1480*680*30mm
|
|
Weight
|
10.60KG
|
|

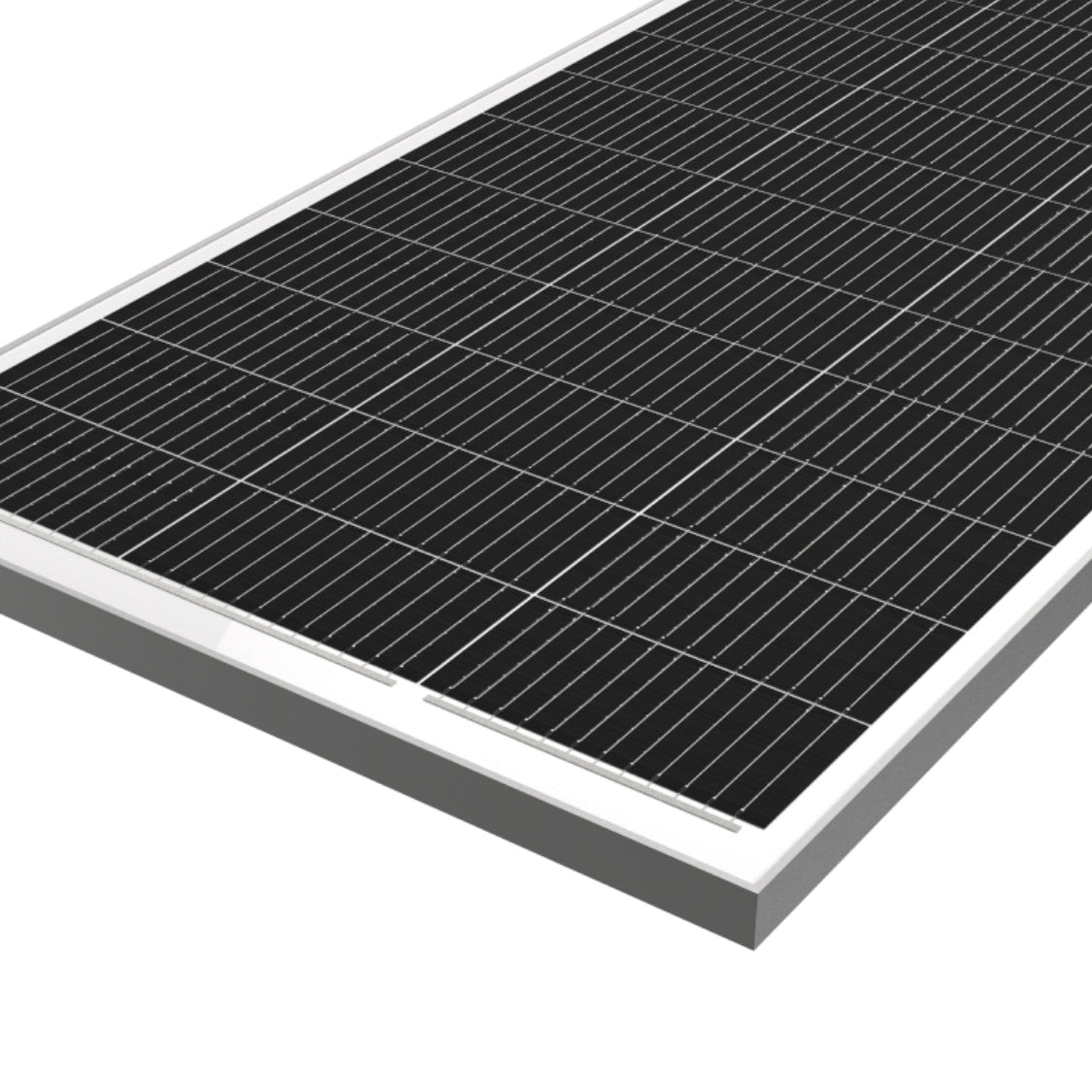

Solar Cells
|
Mono crystalline 210*105mm (3*13Pcs)
|
|
Front Glass
|
3.2 mm tempered glass
|
|
Frame
|
Aluminum
|
|

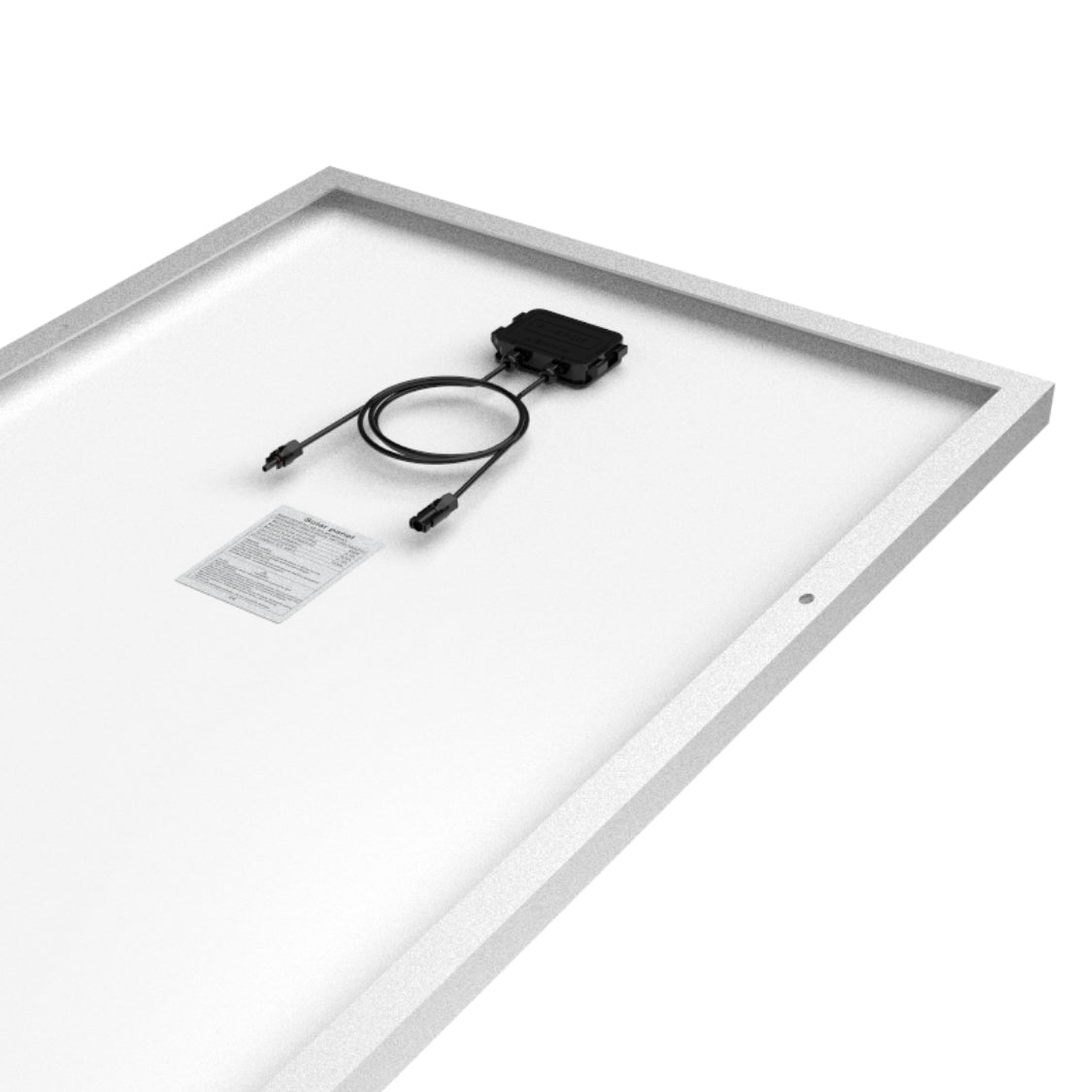

Junction Box
|
IP67
|
|
Output Cables
|
70CM 2.5mm² Cable
|
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
Packing Configuration
|
|
|
Module Type
|
210M200
|
|
Module Dimensions
|
1480*680*30mm
|
|
Package Dimensions
|
1490*67*690mm
|
|
Package Weight
|
23KG
|
|
Pieces/Package
|
2Pcs
|
|
Temperature Characteristics
|
|
|
Pmax Temperature Coe cient
|
-0.350%/°C
|
|
Voc Temperature Coe cient
|
-0.270%/°C
|
|
Isc Temperature Coe cient
|
+0.048%/°C
|
|
Operating Temperature
|
-40~+85°C
|
|
Nominal Operating Cell Temperature(NOCT)
|
45±2°C
|
