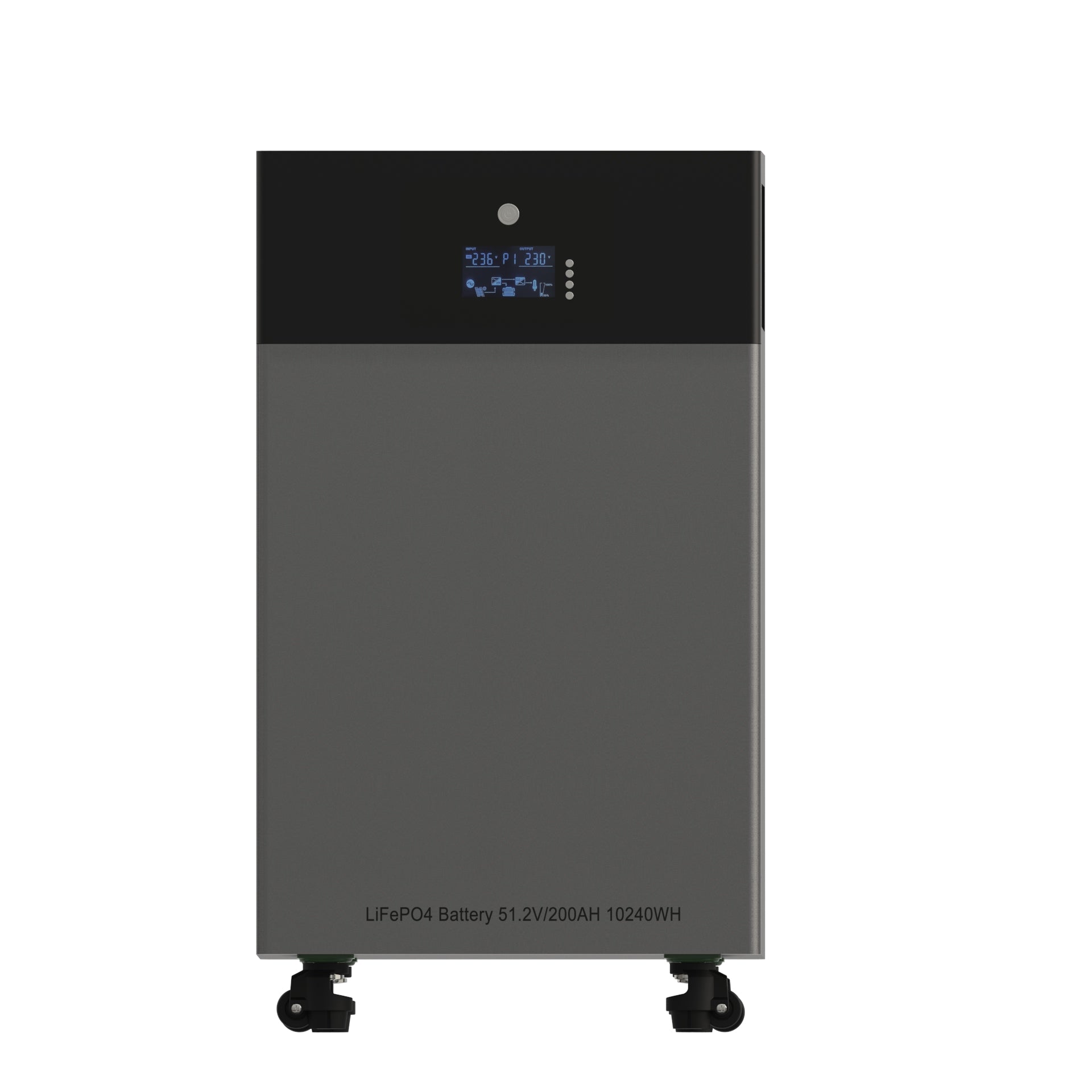

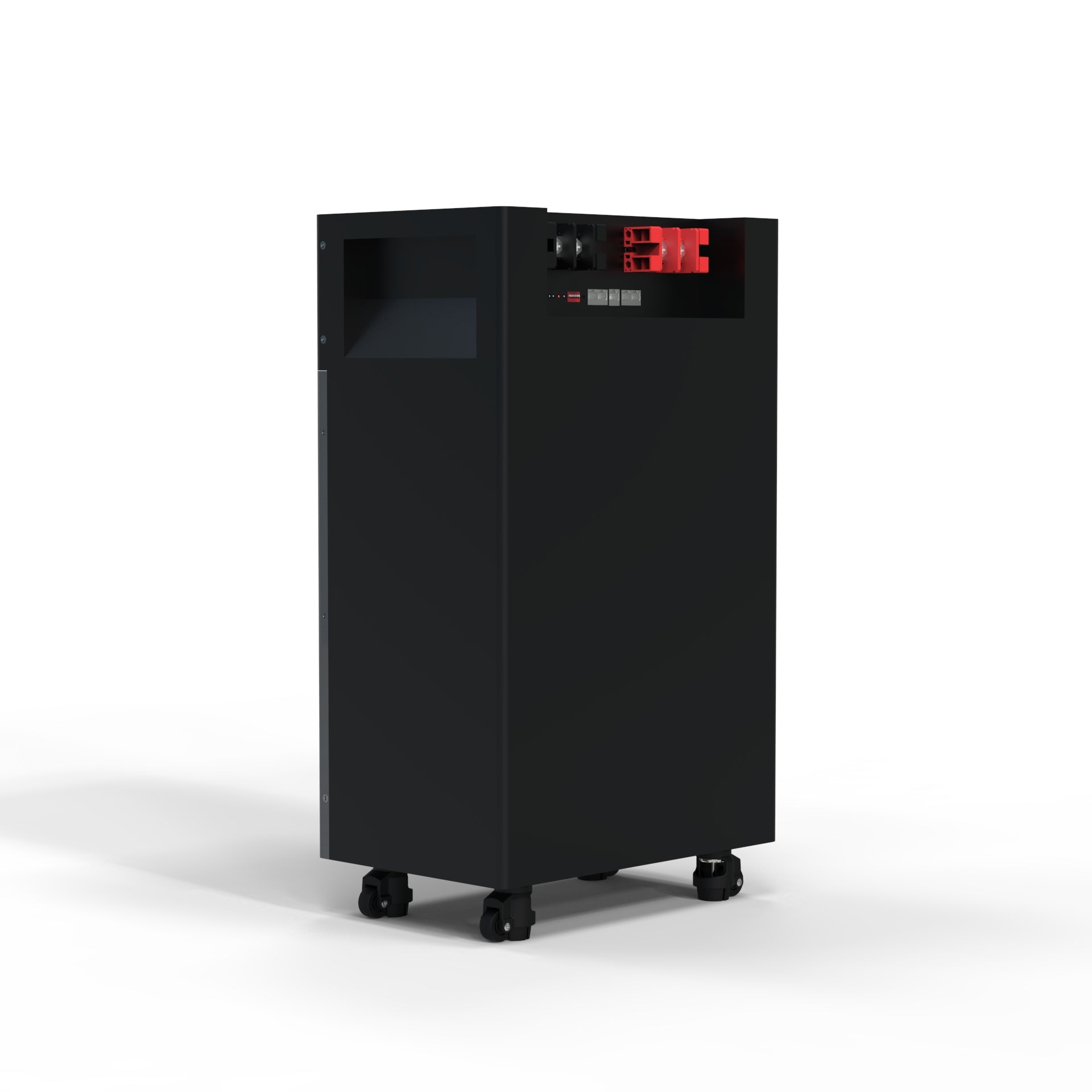

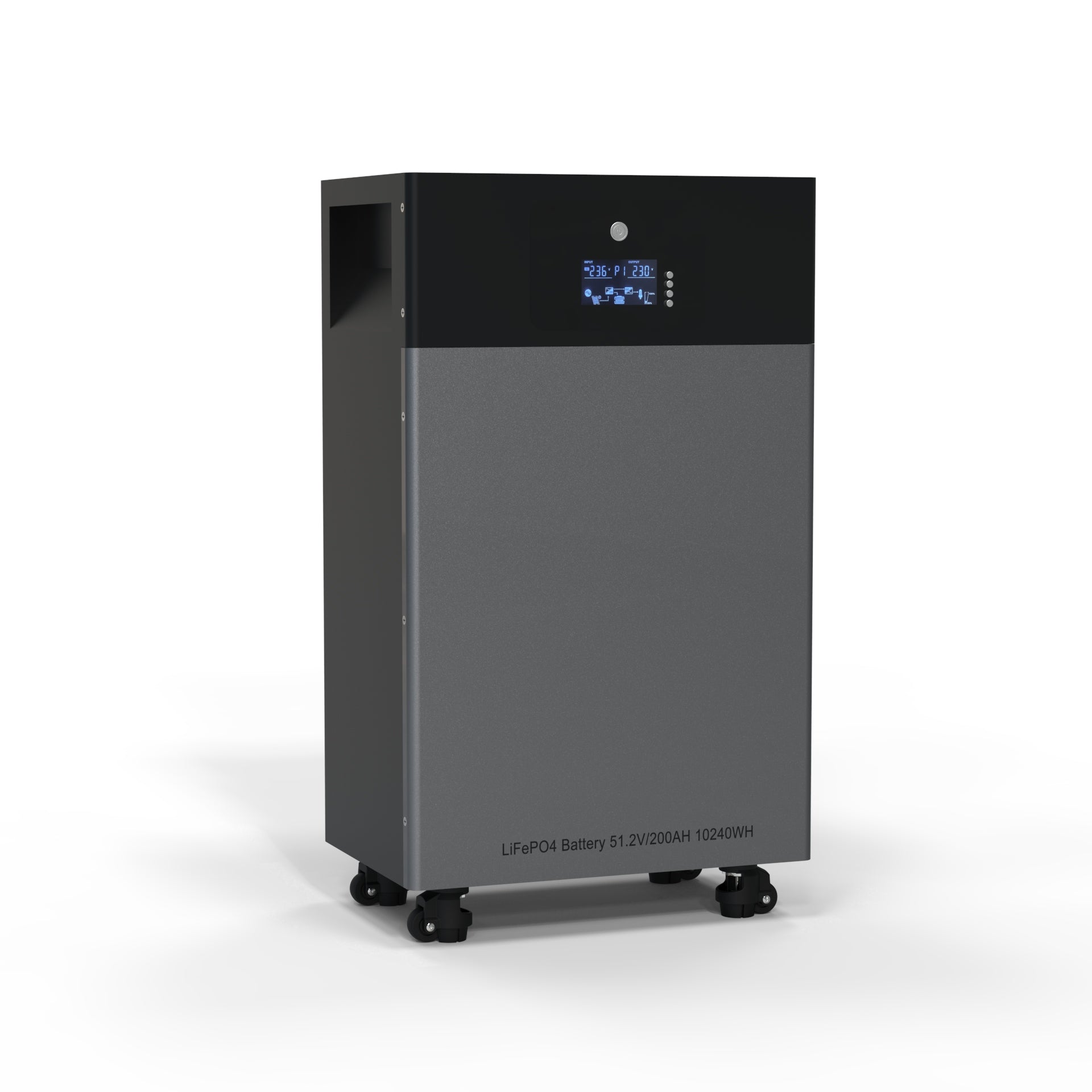

10.24kWh LiFePO4 Battery Pack 51.2V — Deep Cycle Solar Storage, 6000+ Cycles
10.24kWh LiFePO4 Battery Pack 51.2V — Deep Cycle Solar Storage, 6000+ Cycles
Ten kilowatt-hours is the size most households land on: enough to carry an evening and overnight load including refrigeration and fans, without the cost and floor space of the largest bank.
Technical specifications
| Rated Battery Voltage | 51.2 V |
|---|---|
| Energy | 10240 Wh |
| Nominal Capacity | 200 Ah |
| Combination Mode | 16S1P |
| Cycle Life | 6000 cycles @80% DOD |
| Monthly Self-discharge | 3 % |
| Charging Efficiency | 97 % |
| Discharge Efficiency | 98 % |
| Recommended Charging Voltage | 57.6 V |
| Recommended Charging Current | 100 A |
| Maximum Charging Voltage | 58.4 V |
| Maximum Charging Current | 200 A |
| Recommended Discharge Current | 100 A |
| Maximum Discharge Current | 200 A |
| Discharge Termination Voltage | 43.2 V |
| Charging Temperature Range | 0℃~45℃ |
| Discharge Temperature Range | -20℃~60℃ |
| Storage Temperature | 0℃~40℃ |
| Protection Class | IP30 |
| Shell Material | Case of metal |
| Communication | CAN/RS485/RS232 |
| Battery Size (W*D*H) | 687*395*262MM |
| Net Weight | 85 kg |
| Gross Weight | 103 kg |
| Package Size (W*D*H) | 780*476*427MM |
Where it fits best
- Evening and overnight coverage for a family home
- Off-grid homes with daytime solar charging and moderate evening use
- Backup for a small office or shop
Questions buyers ask
Can I start smaller and add more later?
Yes. Parallel expansion is supported, though for longest service life the banks should be similar in age and capacity when they are paralleled.
What charging current does it accept?
150 A recommended with 200 A maximum, which allows a full recharge in roughly two hours from a suitably powerful charger or inverter.
Explore more from IPV ESSA
Frequently Asked Questions
What is a LiFePO4 battery?
Lithium iron phosphate chemistry that offers long cycle life, thermal stability, and safe deep discharge compared with older battery types.
How long does it last?
LiFePO4 packs typically deliver thousands of charge cycles at 80% depth of discharge, which means years of daily use.
Can I expand capacity later?
Many IPV ESSA systems support parallel battery expansion; check the model manual for the maximum number of units.
Where should I install it?
In a ventilated, dry location away from direct heat and moisture, as with any electrical storage equipment.
