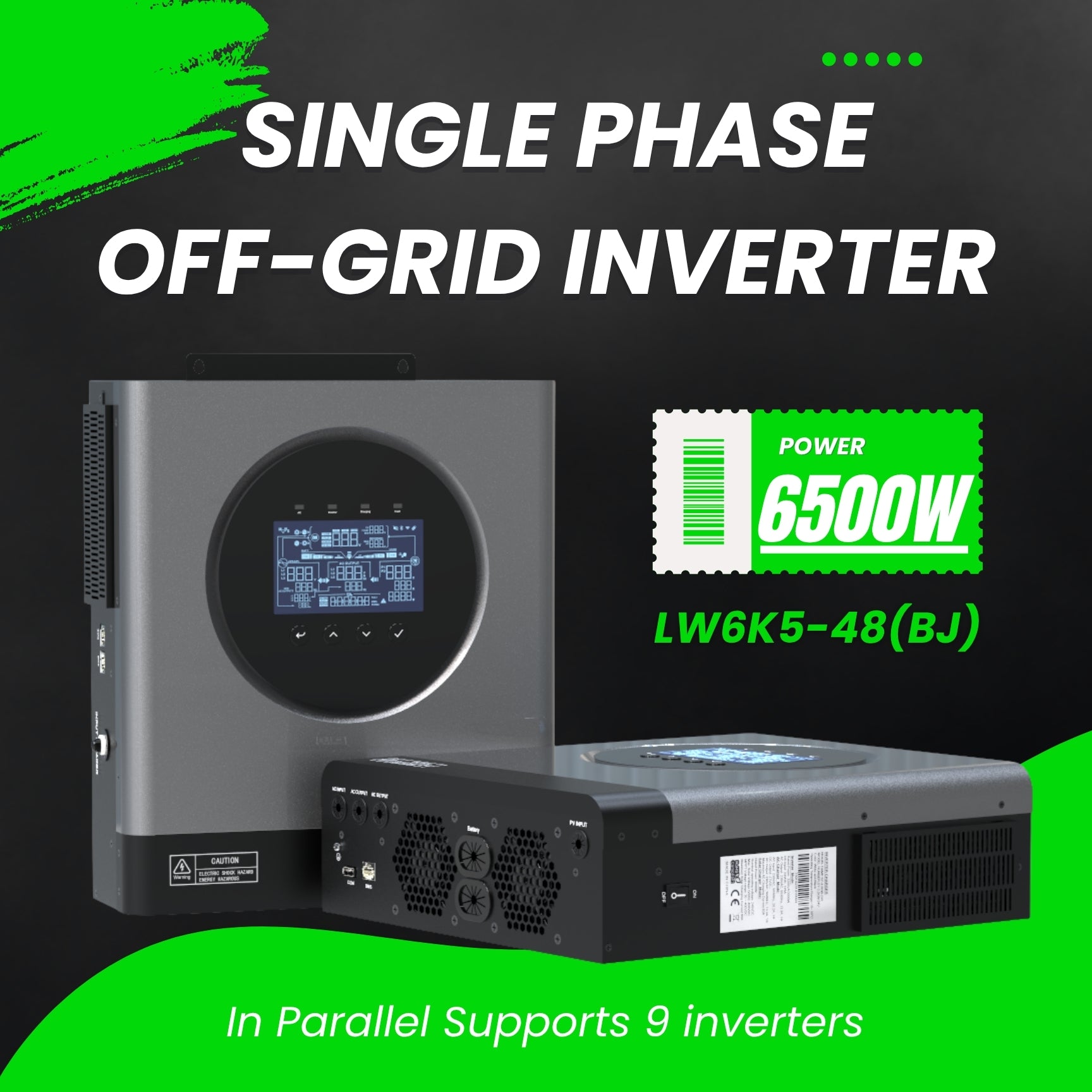

LW6K5-48(BJ)
LW6K5-48(BJ)
⚡ 6.5kW Pure Sine Wave Output;
High continuous power for air conditioners, refrigerators, pumps, and whole-home applications.
🚀 12kVA Surge Power;
Strong motor-start capability for heavy inductive loads.
☀ High-Power MPPT – Up to 9000W PV Input;
Wide MPPT voltage range 60–450V, max PV voltage 500V, ideal for large rooftop and off-grid solar systems.
🔋 Fast Charging – Up to 120A;
Supports PV charging, AC charging, or combined charging up to 120A.
🏠 10ms UPS Transfer Time;
Seamless switching ensures uninterrupted power for critical loads.
🔌 48V Lithium & Lead-acid Compatible;
Higher voltage battery system for better efficiency and lower current loss.
📡 Smart Monitoring & Expansion Ready;
LCD display + RS232 / RS485 / CAN + parallel interface + optional WiFi .
🔒 Comprehensive Protection System;
Overload, short-circuit, overcharge, and thermal protection.
🌡 Wide Operating Temperature: -10°C ~ 60°C;
Stable performance in hot, dusty, and harsh environments.
🛠 Compact Design & OEM/ODM Support;
High power density, compact size, supports branding, panel customization, and low MOQ.
|
AC Input
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L+N+PE
|
|
Voltage Range (VAC)
|
90~280±3 (normal mode); 170~280±3 (UPS mode)
|
|
|
Frequency (Hz)
|
50 / 60 (Auto Adaptive)
|
|
|
AC Output
|
Rated Capacity (kW)
|
6.5
|
|
Surge Power (kVA)
|
12
|
|
|
Voltage (VAC)
|
208 / 220 / 230 / 240
|
|
|
Power Factor (PF)
|
1
|
|
|
Frequency
|
50/60Hz±0.1%
|
|
|
Switch Time (ms)
|
10 (normal mode) / 10 (UPS mode)
|
|
|
Wave Form
|
Pure Sine Wave
|
|
|
Overload Capacity (Battery Mode)
|
1min@102%-120%load, 10s>120% load
|
|
|
Max. Efficiency (Battery Mode)
|
94%@48VDC
|
|
|
Parallel Quantity
|
9
|
|
|
Charger
(PV / AC)
|
Solar Charger Type
|
MPPT
|
|
Max PV input current / power
|
27A / 9000W
|
|
|
MPPT Range@Operating Voltage (VDC)
|
60~450
|
|
|
Max PV Open Circuit Voltage (VDC)
|
500
|
|
|
Max PV Charge Current (A)
|
120
|
|
|
Max AC Charge Current (A)
|
120
|
|
|
Max. Charge Current (PV + AC) (A)
|
120
|
|
|
Battery
|
Normal Voltage (VDC）
|
48
|
|
Floating Charge Voltage (VDC)
|
54
|
|
|
Overcharge Protection (VDC)
|
61
|
|
|
Battery Type
|
Lead-acid / Lithium
|
|
|
Interface
|
HMI
|
LCD
|
|
Interface
|
RS232 / RS485 (optional) / CAN (optional) /
Parallel Interface (optional)
|
|
|
Monitoring
|
Wifi(optional)
|
|
|
General Data
|
Ingress Protection
|
IP21
|
|
Operating Temperature
|
-10°C ~ 60°C
|
|
|
Relative Humidity
|
5% - 95% (Non-condensing)
|
|
|
Storage Temperature
|
-15°C ~ 60°C
|
|
|
Net Weight (kg)
|
8.4
|
|
|
Dimensions (H*W*D)
|
410*336*110mm
|
|
|
Max. Operating Altitude
|
4000m (Derating above 1000m)
|
