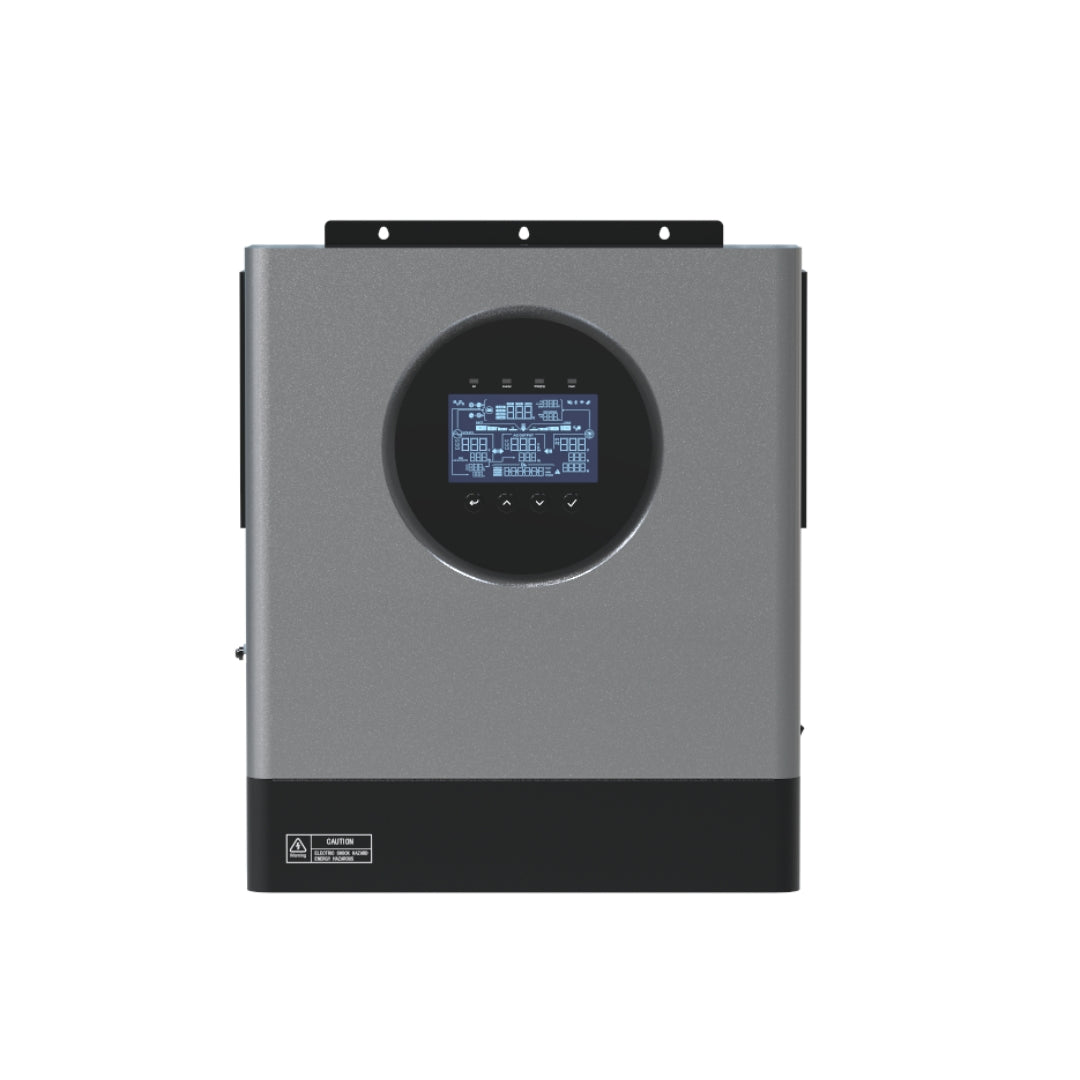

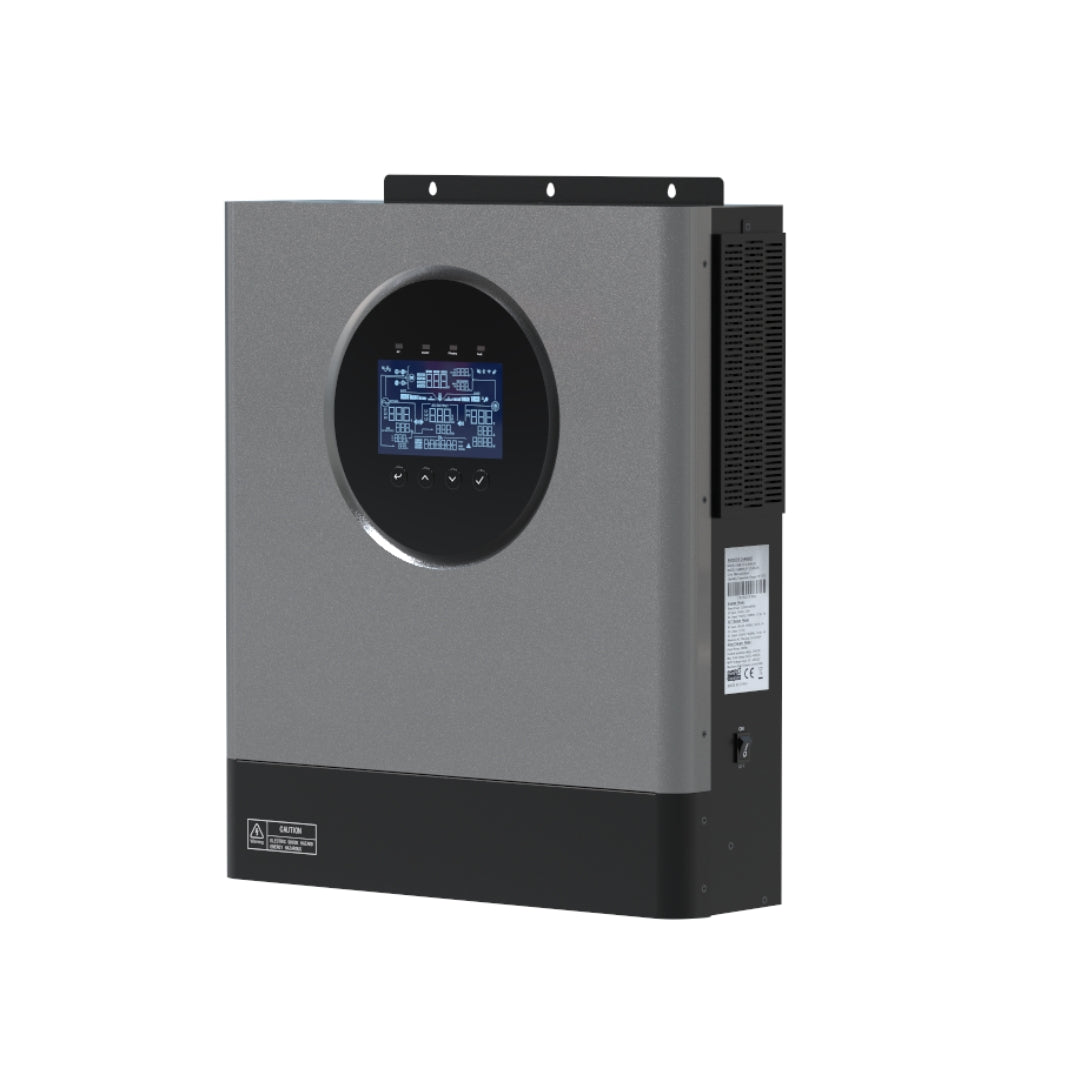

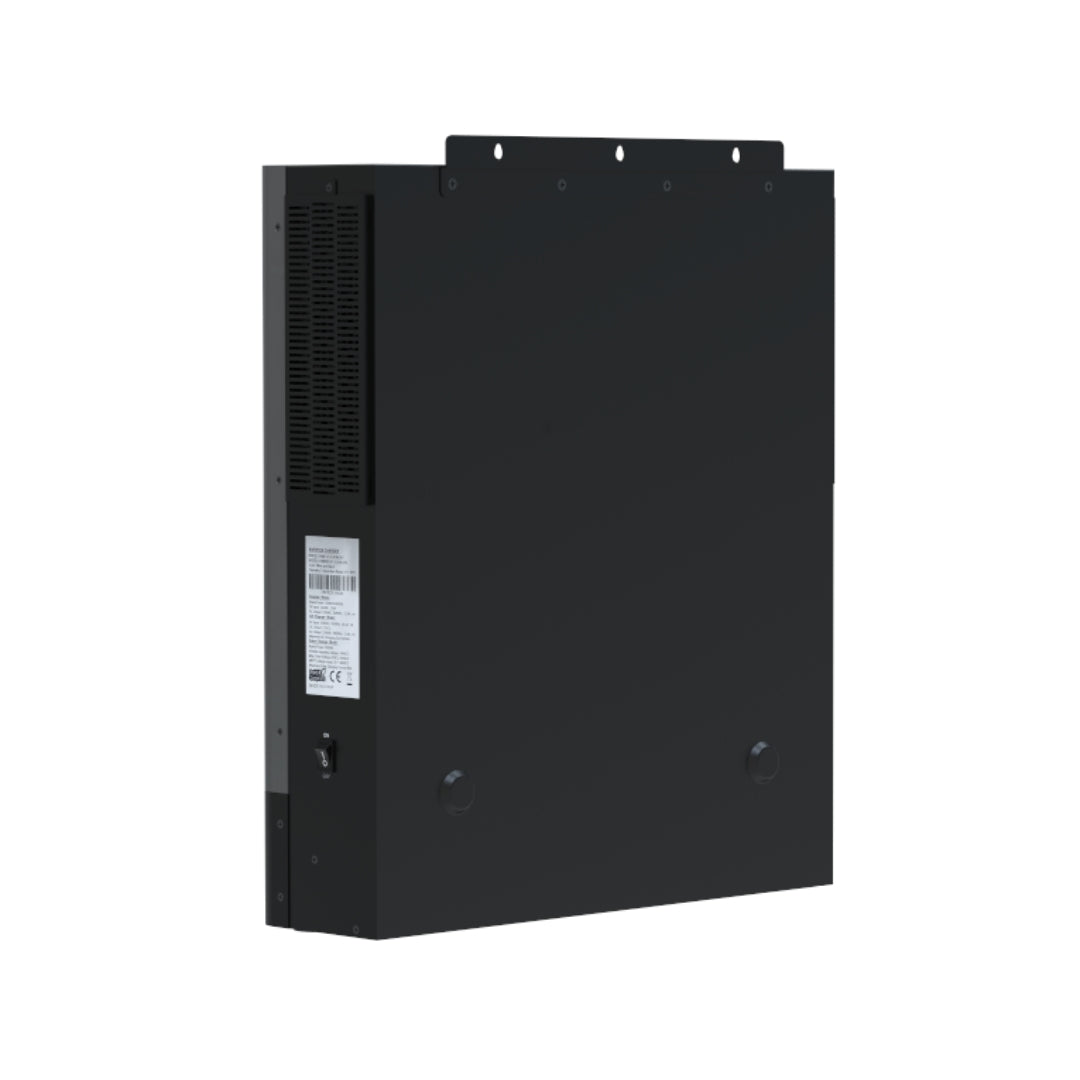

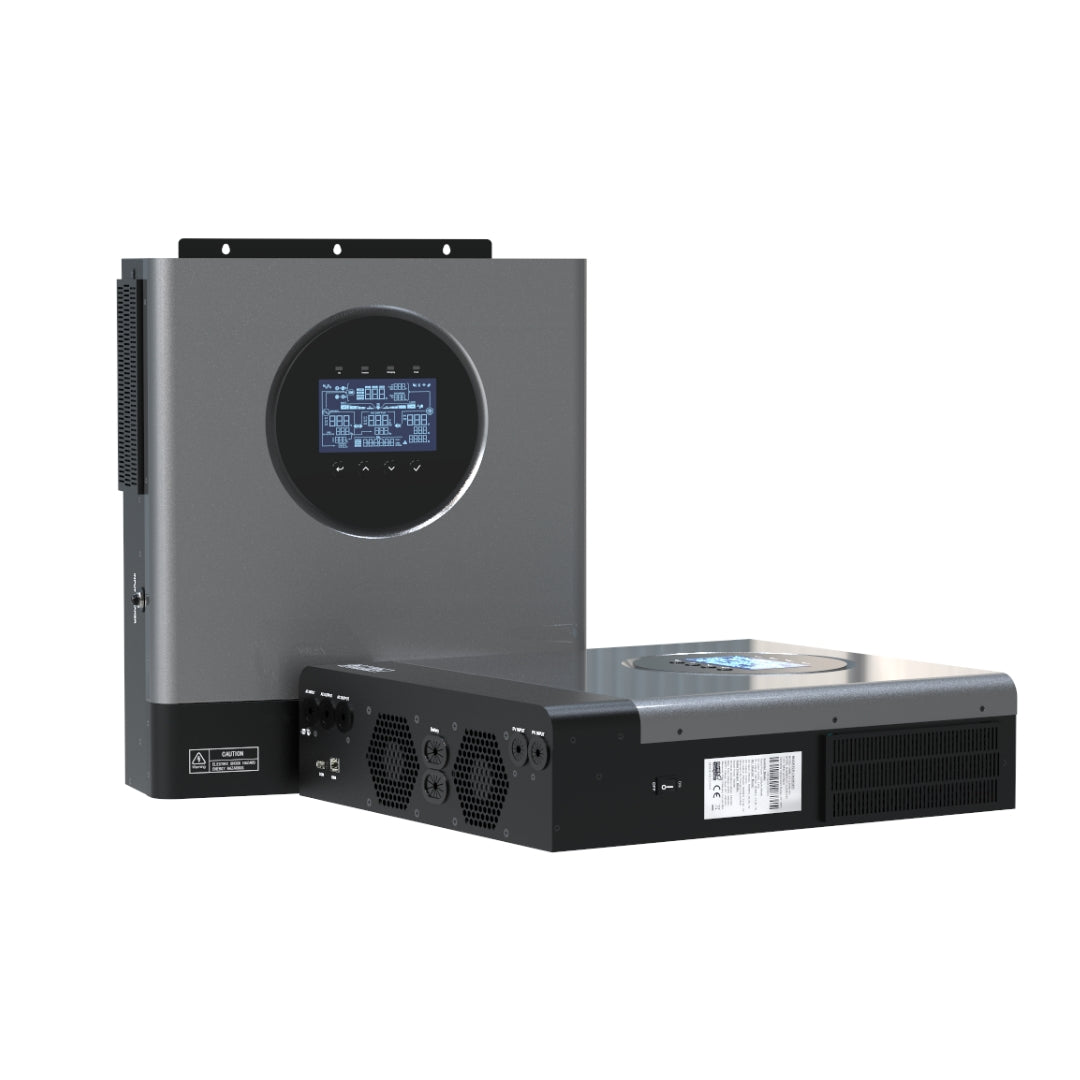

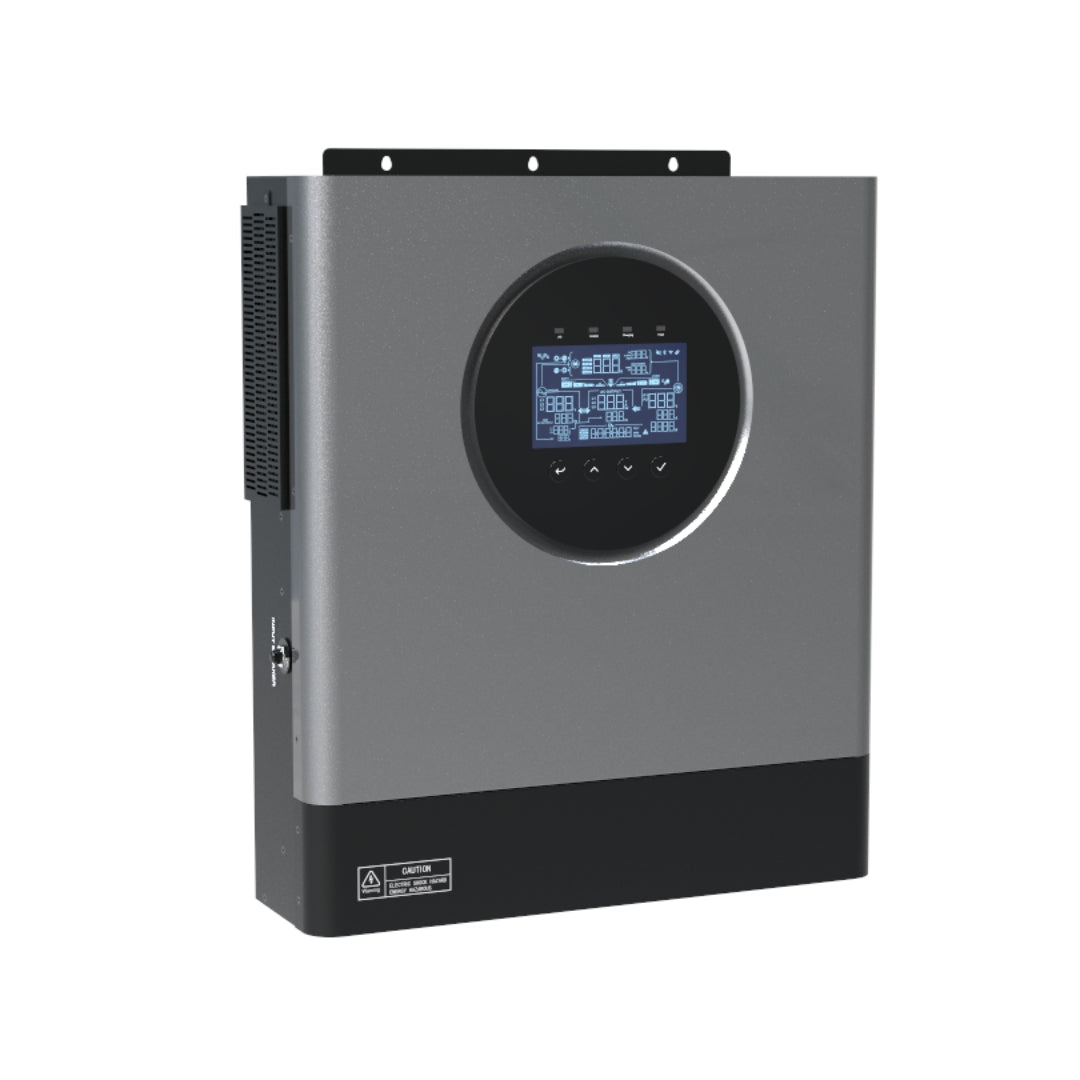

LW12K-48
LW12K-48
⚡ 12kW Pure Sine Wave Output
High continuous power for villas, workshops, offices, and full off-grid or hybrid systems.
🚀 24kVA Surge Power
Excellent starting performance for air conditioners, pumps, compressors, and heavy loads.
☀ Dual MPPT Design – Up to 15kW PV Input
-
Single MPPT: 9kW / 27A
-
Dual MPPTs: 15kW total (22.5A per MPPT)
Wide MPPT range 60–450V, max PV voltage 500V.
🔋 Ultra-Fast Charging – Up to 160A
Supports PV charging, AC charging, or combined charging for large-capacity battery banks.
🏠 10ms UPS Transfer Time
Seamless switching ensures uninterrupted power for critical equipment.
🔌 48V Lithium & Lead-acid Compatible
Optimized for high-efficiency 48V battery systems.
📡 Smart Monitoring & Control
LCD display + RS232 / RS485 / CAN + optional WiFi monitoring.
🔒 Comprehensive Protection System
Overload, short-circuit, overcharge, over-temperature protection.
🌡 Designed for Harsh Environments
Stable operation from -10°C to 60°C, suitable for Middle East & Africa.
🛠 OEM/ODM Ready for Large Projects
Supports custom branding, panel design, and system integration.
|
AC Input
|
Rated Input Voltage (VAC)
|
208 / 220 / 230 / 240; L+N+PE
|
|
Voltage Range (VAC)
|
90~280±3 (normal mode); 170~280±3 (UPS mode)
|
|
|
Frequency (Hz)
|
50 / 60 (Auto Adaptive)
|
|
|
AC Output
|
Rated Capacity (kW)
|
12
|
|
Surge Power (kVA)
|
24
|
|
|
Voltage (VAC)
|
208 / 220 / 230 / 240
|
|
|
Power Factor (PF)
|
1
|
|
|
Frequency
|
50/60Hz±0.1%
|
|
|
Switch Time (ms)
|
10 (normal mode) / 10 (UPS mode)
|
|
|
Wave Form
|
Pure Sine Wave
|
|
|
Overload Capacity (Battery Mode)
|
1min@102%-125%load, 10s@>125% load
|
|
|
Max. Efficiency (Battery Mode)
|
94%@48VDC
|
|
|
Parallel Quantity
|
NA
|
|
|
Charger
(PV / AC)
|
Solar Charger Type
|
Dual MPPTs
|
|
Max. PV input Current / Input Power
|
Using One MPPT: 27A/9KW
Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total
|
|
|
MPPT Range@Operating Voltage (VDC)
|
60~450
|
|
|
Max PV Open Circuit Voltage (VDC)
|
500
|
|
|
Max PV Charge Current (A)
|
160
|
|
|
Max AC Charge Current (A)
|
160
|
|
|
Max. Charge Current (PV + AC) (A)
|
160
|
|
|
Battery
|
Normal Voltage (VDC）
|
48
|
|
Floating Charge Voltage (VDC)
|
54
|
|
|
Overcharge Protection (VDC)
|
61
|
|
|
Battery Type
|
Lead-acid / Lithium
|
|
|
Interface
|
HMI
|
LCD
|
|
Interface
|
RS232 / RS485 / CAN (optional)
|
|
|
Monitoring
|
Wifi(optional)
|
|
|
General Data
|
Ingress Protection
|
IP21
|
|
Operating Temperature
|
-10°C ~ 60°C
|
|
|
Relative Humidity
|
5% - 95% (Non-condensing)
|
|
|
Storage Temperature
|
-15°C ~ 60°C
|
|
|
Net Weight (kg)
|
15
|
|
|
Dimensions (H*W*D)
|
514*442*121mm
|
|
|
Max. Operating Altitude
|
4000m (Derating above 1000m)
|
