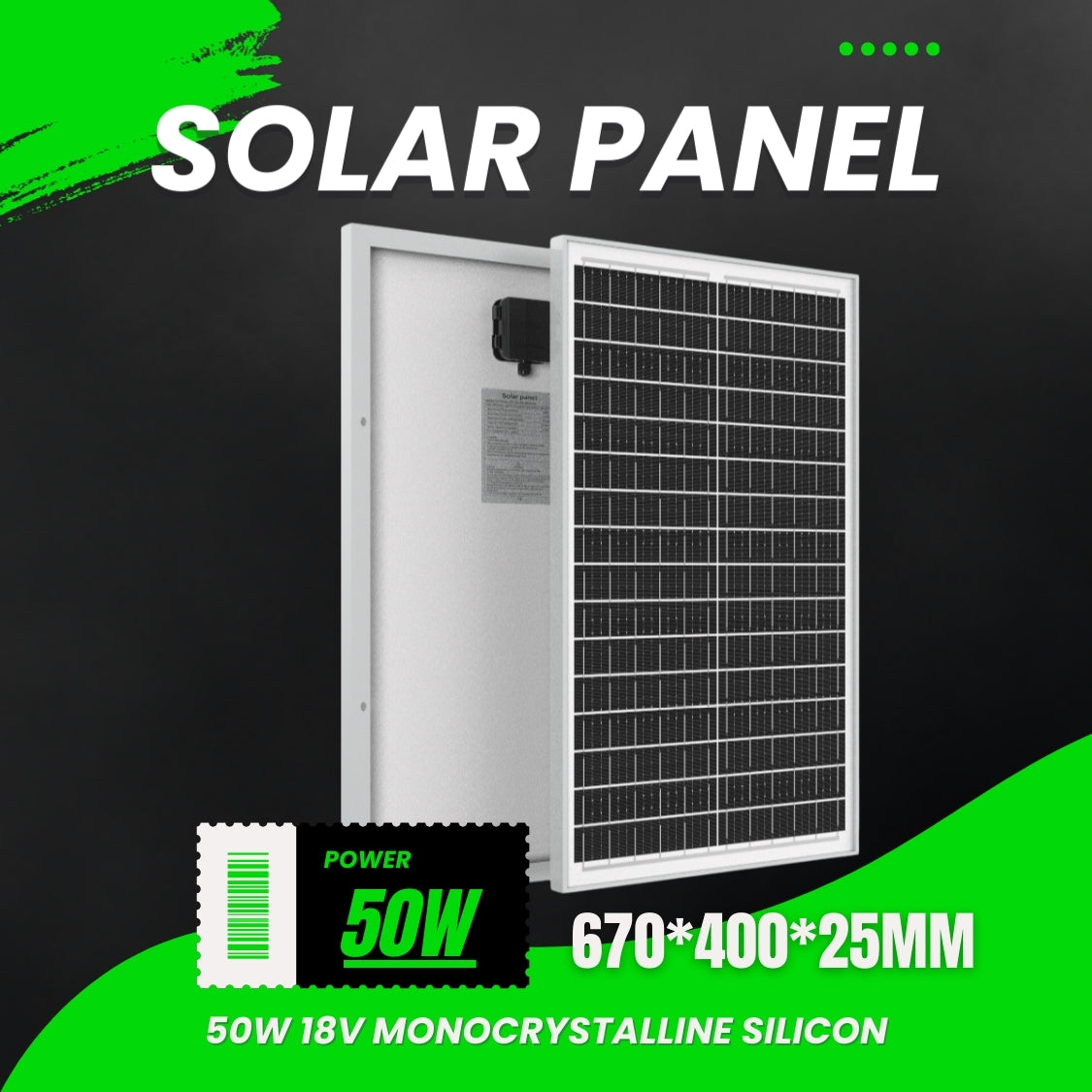

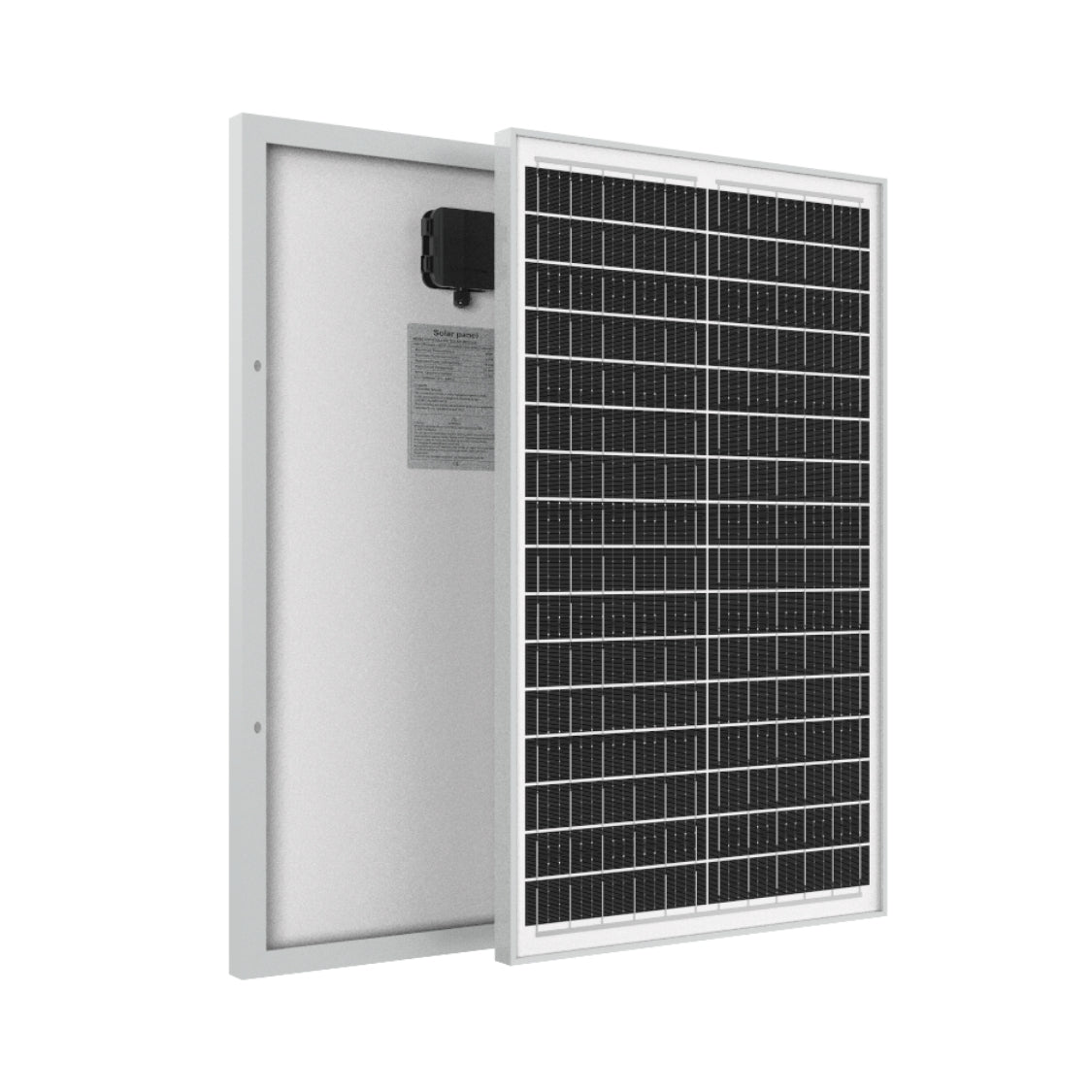

50w 670x400x25mm
50w 670x400x25mm
Regular price
$9.28 USD
Regular price
Sale price
$9.28 USD
Unit price
per
|
Electrical Characteristics (STC)
|
|
|
Maximum Power- Pmax
|
50W
|
|
Open Circuit Voltage - Voc
|
21.84V
|
|
Short- Circuit Current - Isc
|
2.91A
|
|
Voltage at Pmax -Vmp
|
18.2V
|
|
Current at Pmax - Imp
|
2.75A
|
|
Module Efficiency -ηm
|
18.66%
|
|
Power Tolerance
|
0, +4.99W
|
|
Maximum System Voltage
|
700Vdc (IEC / UL)
|
|
Maximum Series Fuse Rating
|
10A
|
|
Mechanical Specifications
|
|
|
External Dimensions
|
670*400*25mm
|
|
Weight
|
3.8KG
|
|

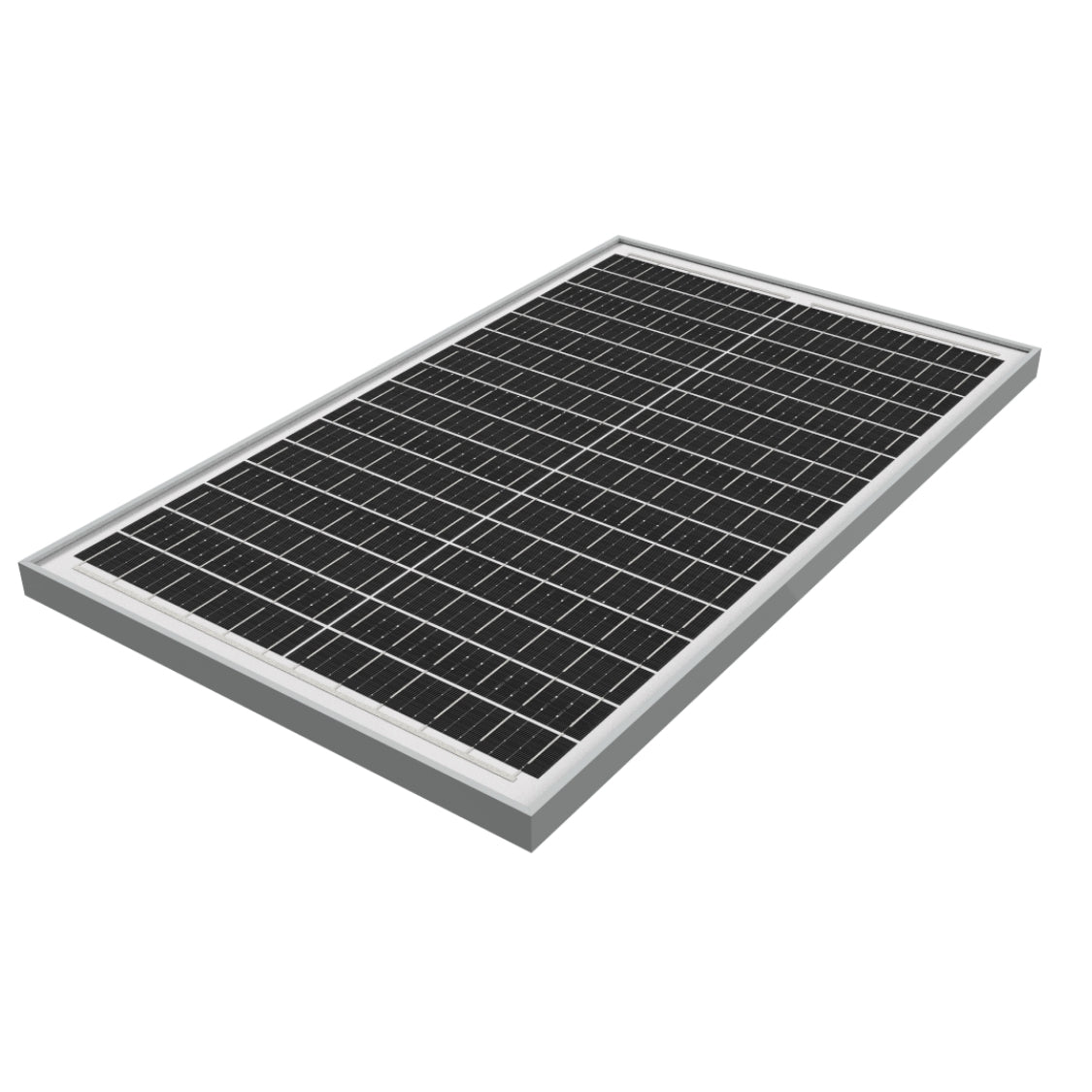

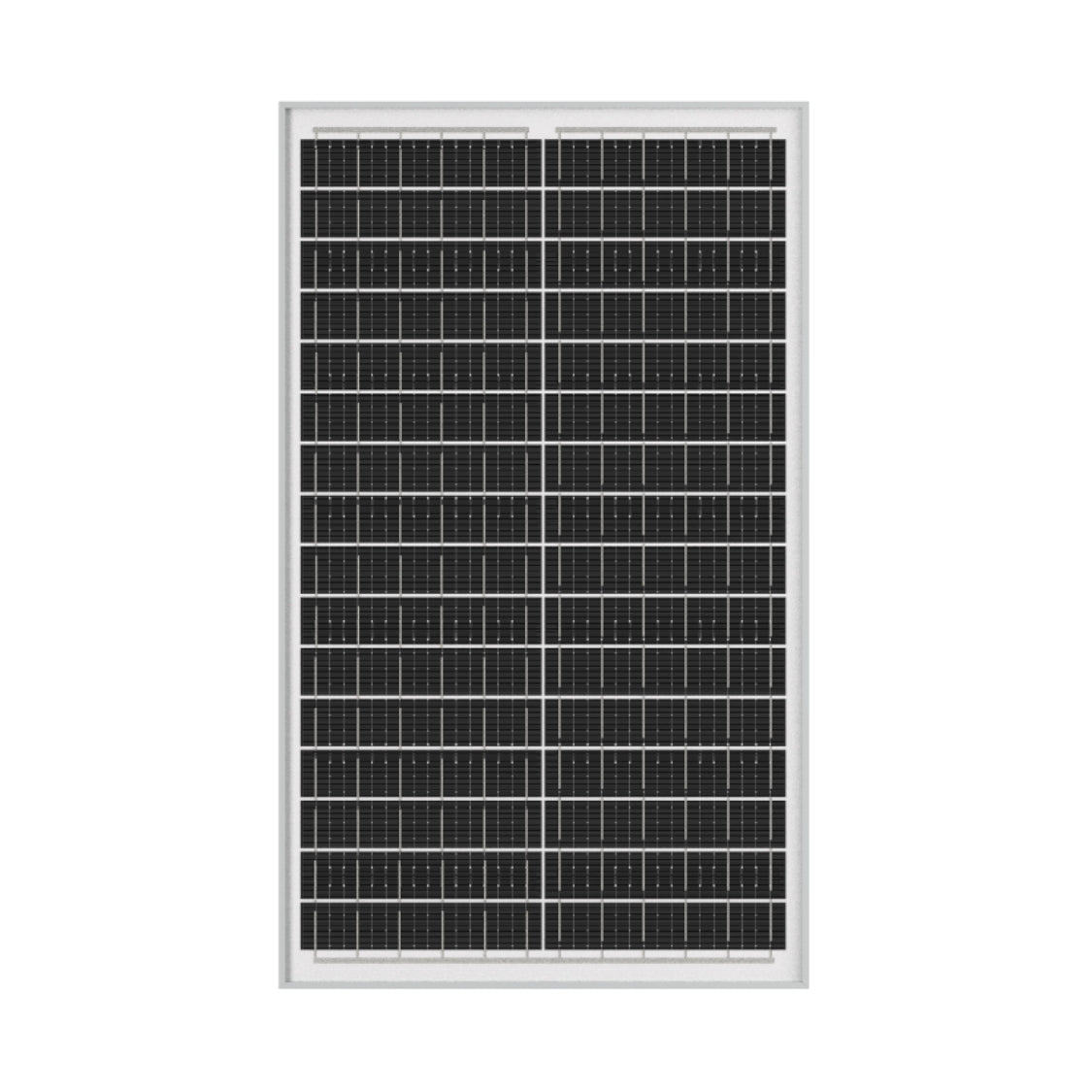

Solar Cells
|
Mono crystalline 182*36.4mm (2*16Pcs)
|
|
Front Glass
|
3.2 mm tempered glass
|
|

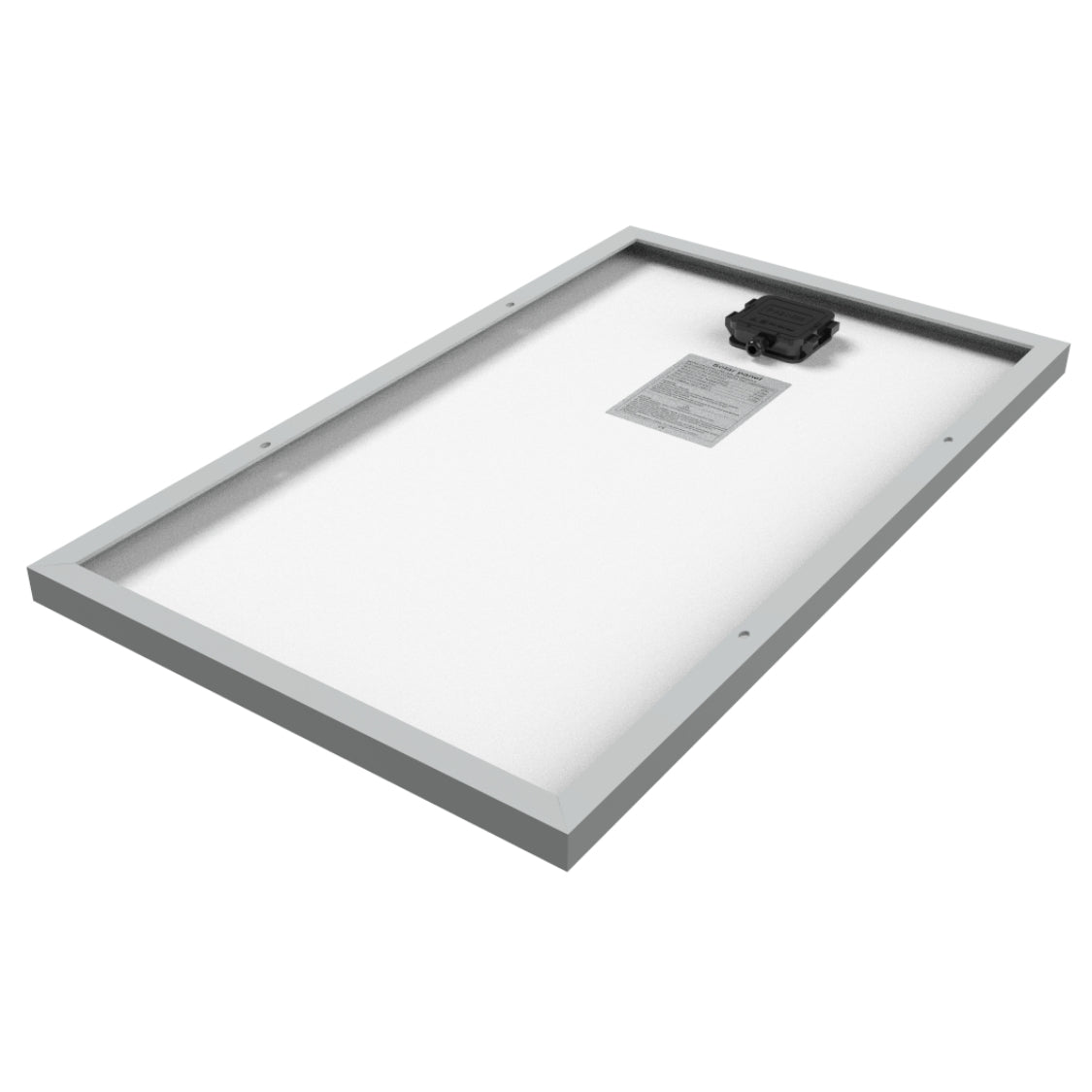

Frame
|
Aluminum
|
|

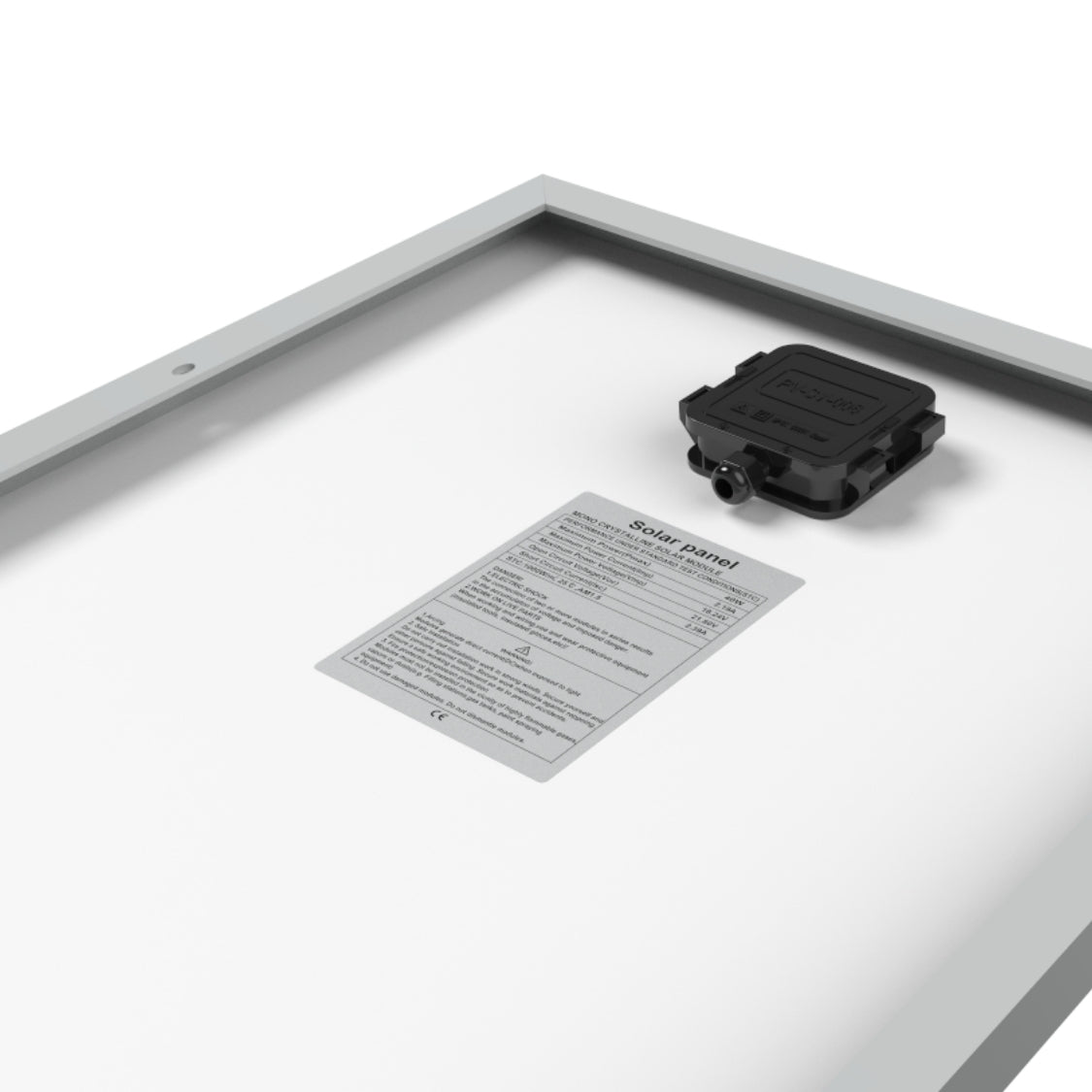

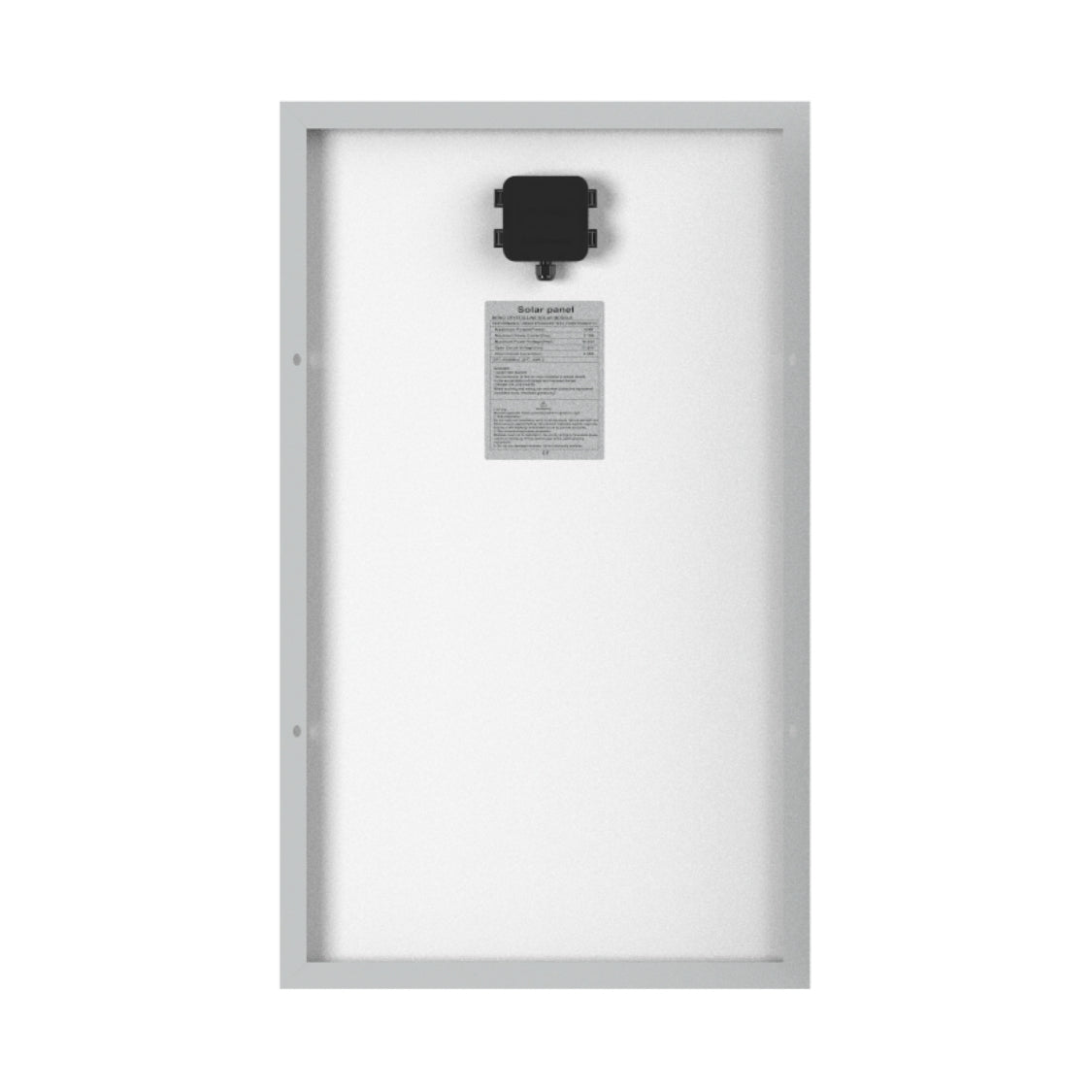

Junction Box
|
IP67
|
|
Output Cables
|
Without cable
|
|
Connector
|
Without Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
Packing Configuration
|
|
|
Module Type
|
182M05018
|
|
Module Dimensions
|
670*400*25mm
|
|
Package Dimensions
|
685*140*415mm
|
|
Package Weight
|
20KG
|
|
Pieces/Package
|
5Pcs
|
|
Temperature Characteristics
|
|
|
Pmax Temperature Coe cient
|
-0.350%/°C
|
|
Voc Temperature Coe cient
|
-0.270%/°C
|
|
Isc Temperature Coe cient
|
+0.048%/°C
|
|
Operating Temperature
|
-40~+85°C
|
|
Nominal Operating Cell Temperature(NOCT)
|
45±2°C
|
