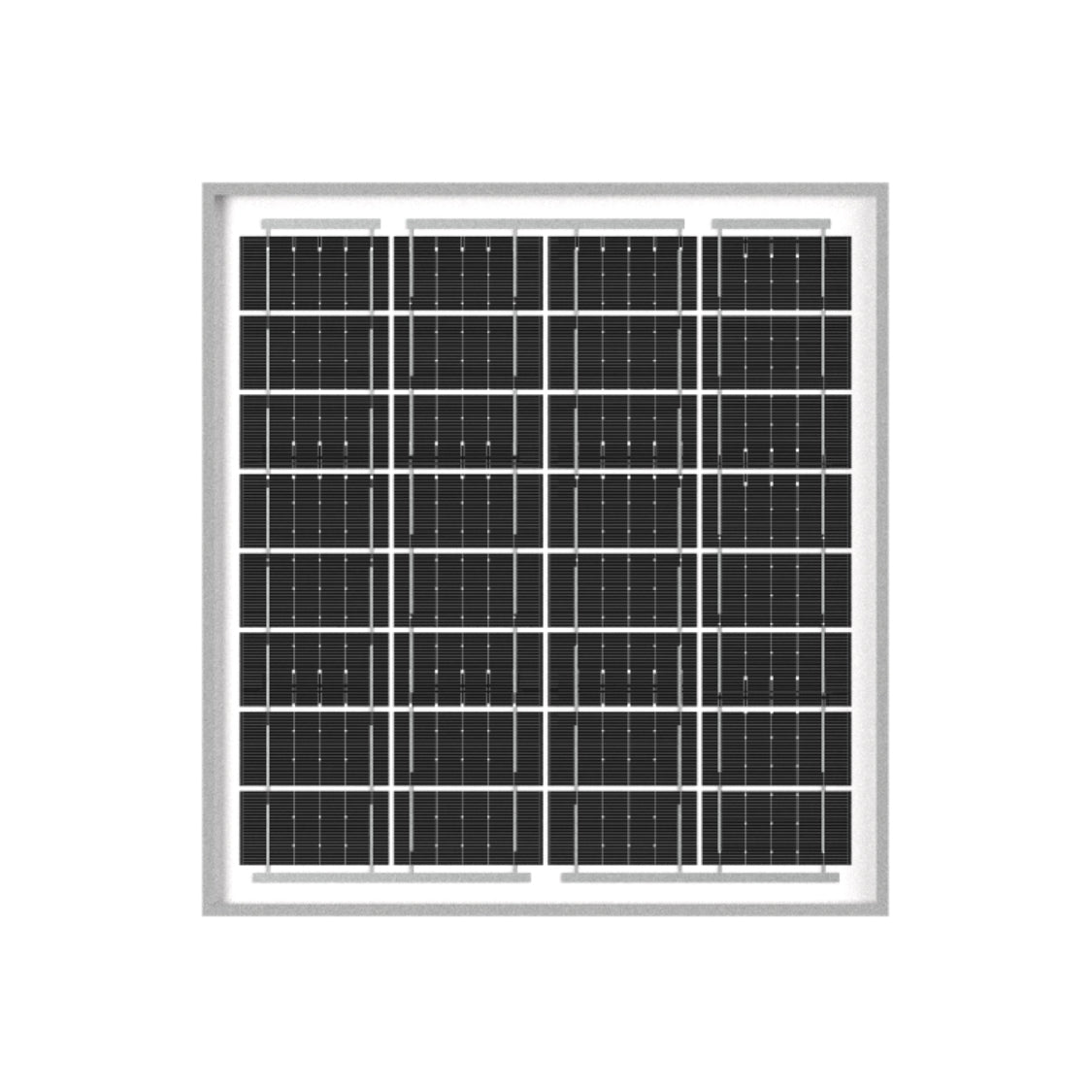

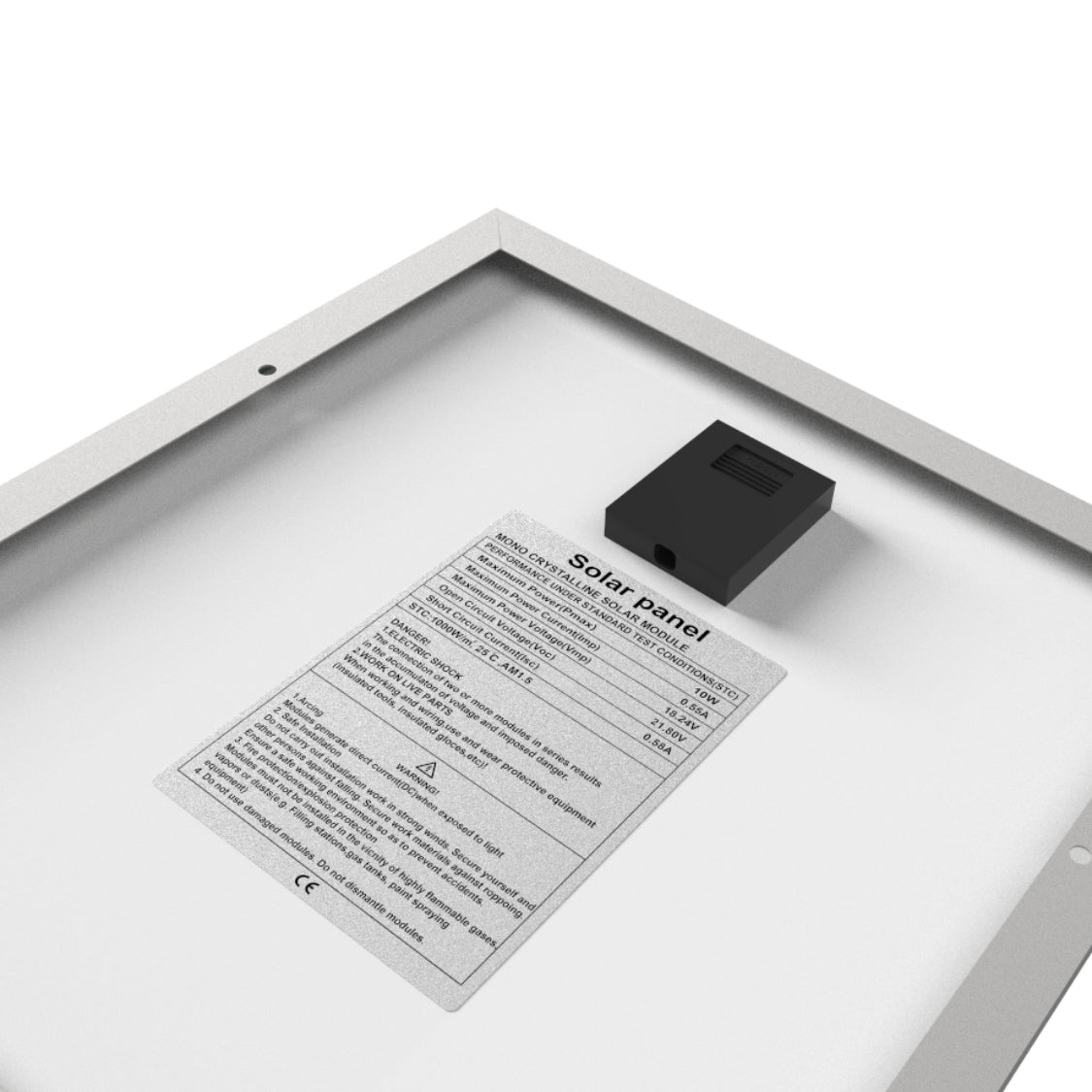

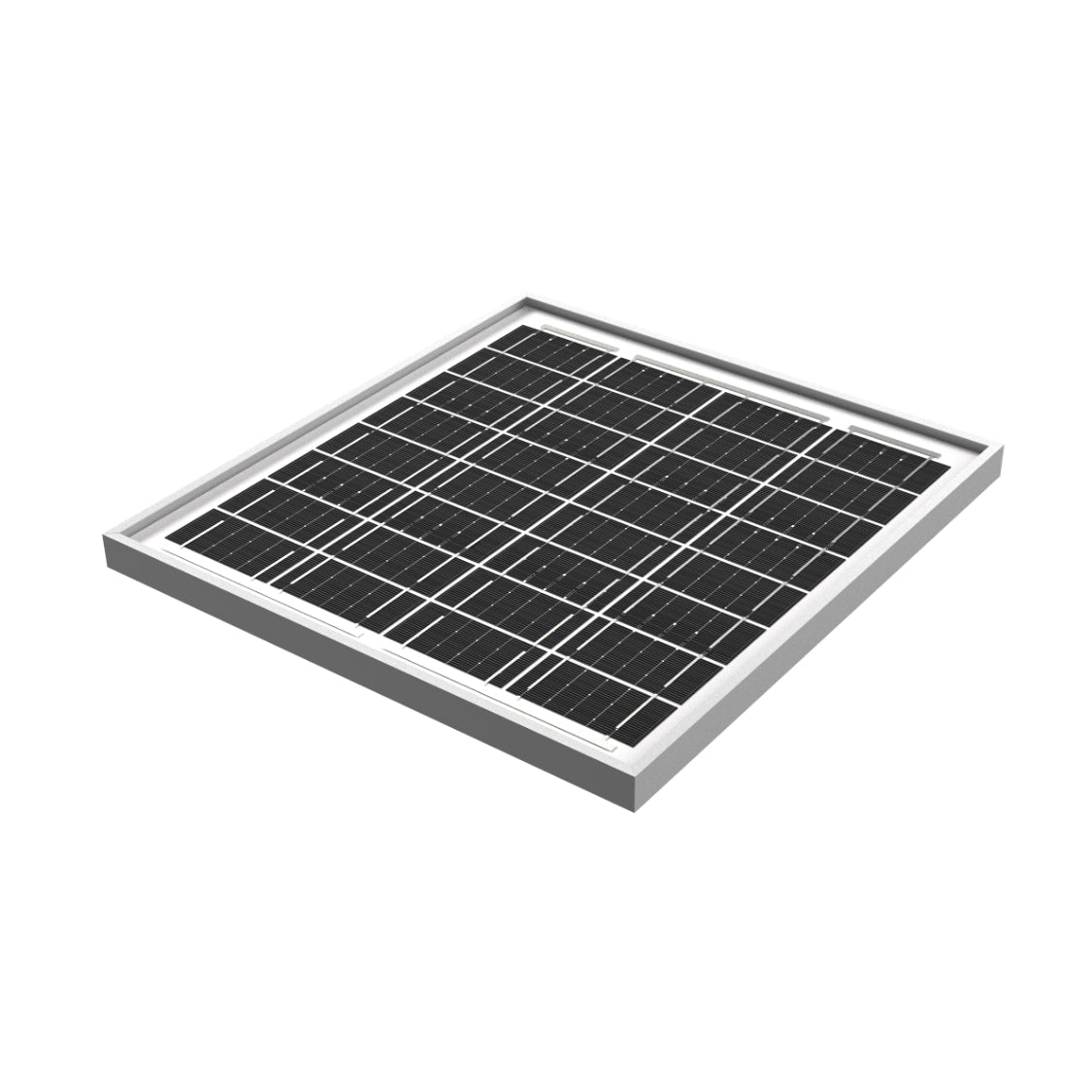

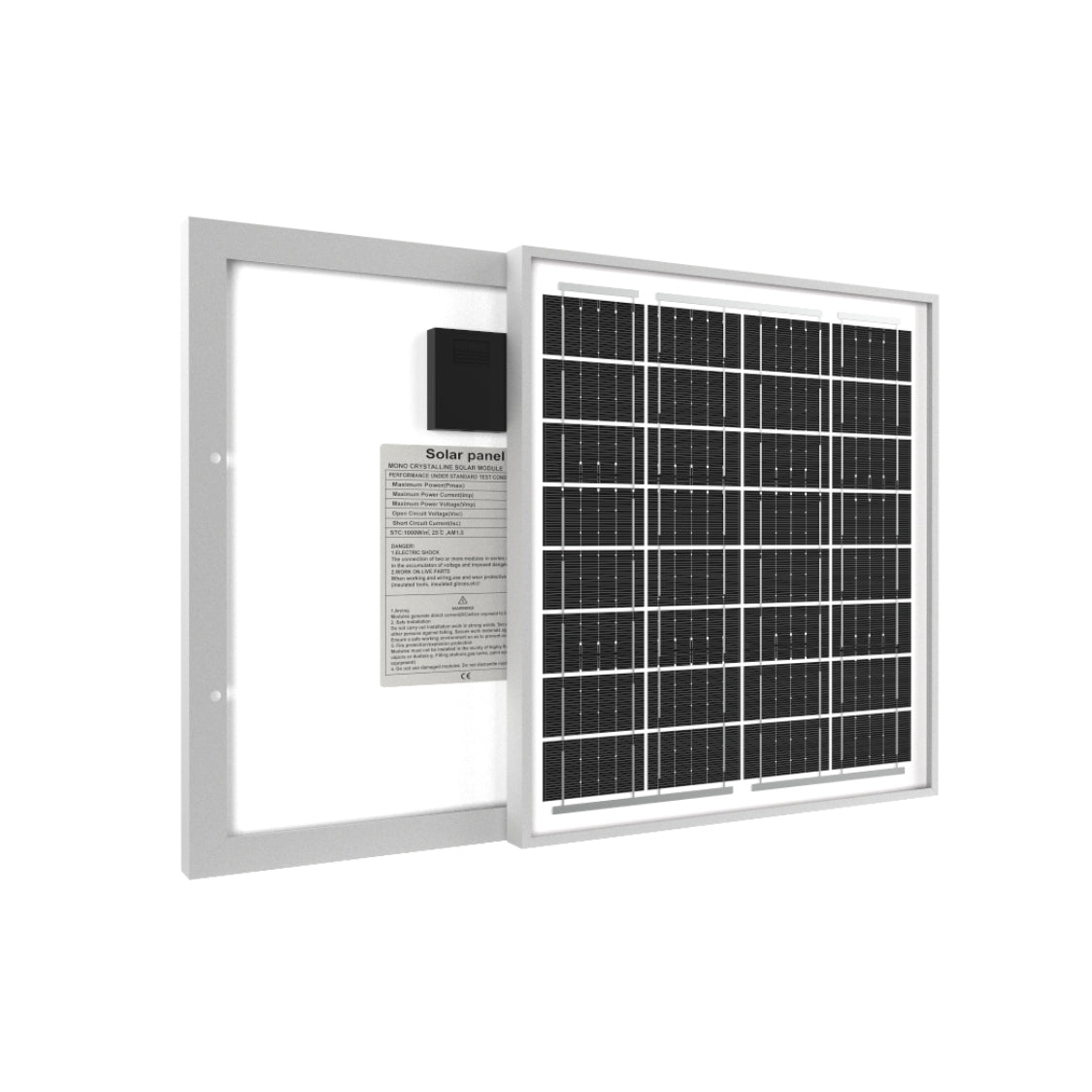

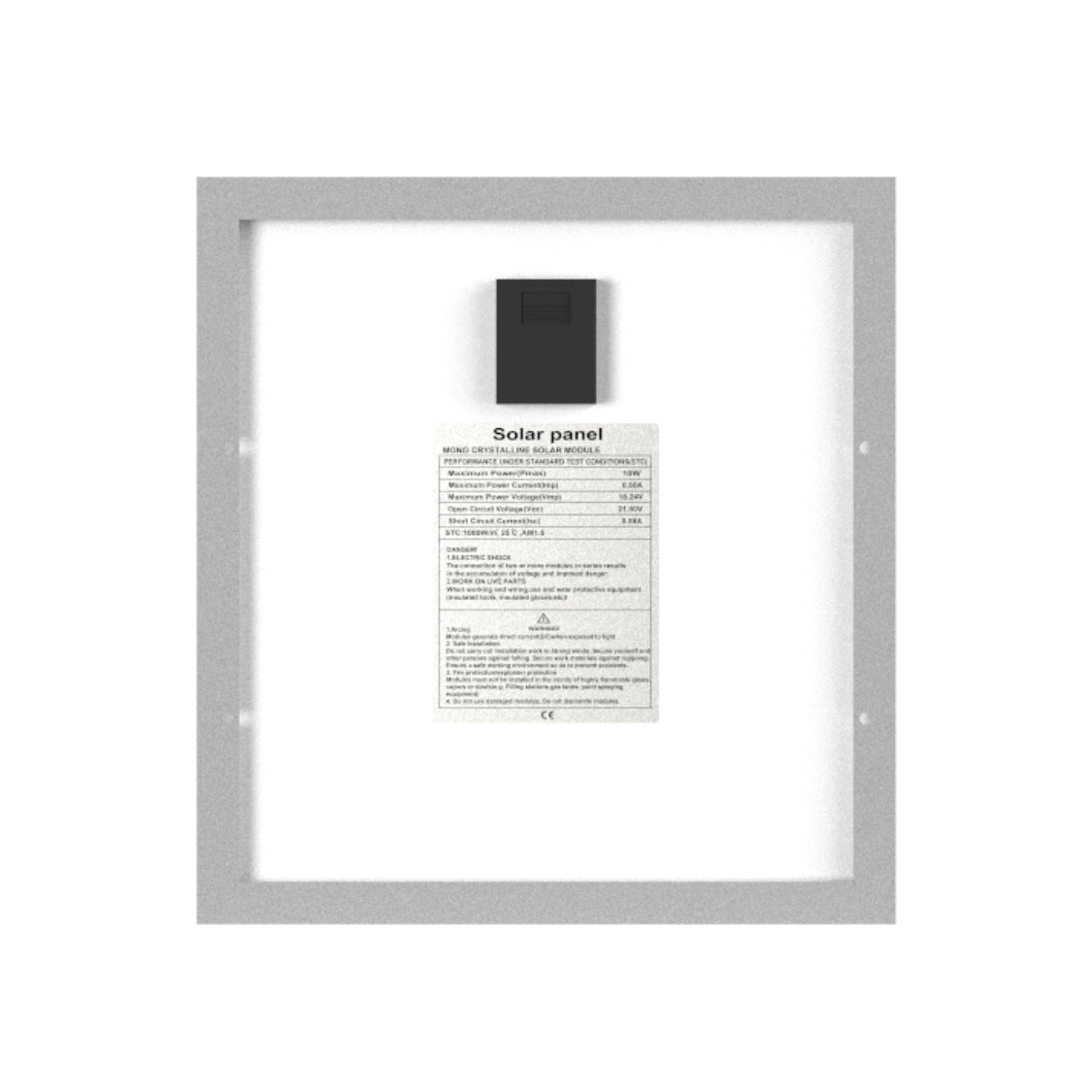

10w 300x280x17mm
10w 300x280x17mm
Regular price
$3.48
Regular price
Sale price
$3.48
Unit price
per
|
Electrical Characteristics (STC)
|
|
|
Maximum Power- Pmax
|
10W
|
|
Open Circuit Voltage - Voc
|
21.84V
|
|
Short- Circuit Current - Isc
|
0.58A
|
|
Voltage at Pmax -Vmp
|
18.2V
|
|
Current at Pmax - Imp
|
0.55A
|
|
Module Efficiency -ηm
|
11.9%
|
|
Power Tolerance
|
0, +4.99W
|
|
Maximum System Voltage
|
700Vdc (IEC / UL)
|
|
Maximum Series Fuse Rating
|
10A
|
|
Mechanical Specifications
|
|
|
External Dimensions
|
300*280*17mm
|
|
Weight
|
0.9KG
|
|
Solar Cells
|
Mono crystalline 60.8*30.3mm (4*8Pcs)
|
|
Front Glass
|
3.2 mm tempered glass
|
|
Frame
|
Aluminum
|
|
Junction Box
|
IP67
|
|
Output Cables
|
Without cable
|
|
Connector
|
Without Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
Packing Configuration
|
|
|
Module Type
|
182M01018
|
|
Module Dimensions
|
300*280*17mm
|
|
Package Dimensions
|
315*185*295mm
|
|
Package Weight
|
10KG
|
|
Pieces/Package
|
10Pcs
|
|
Temperature Characteristics
|
|
|
Pmax Temperature Coe cient
|
-0.350%/°C
|
|
Voc Temperature Coe cient
|
-0.270%/°C
|
|
Isc Temperature Coe cient
|
+0.048%/°C
|
|
Operating Temperature
|
-40~+85°C
|
|
Nominal Operating Cell Temperature(NOCT)
|
45±2°C
|
